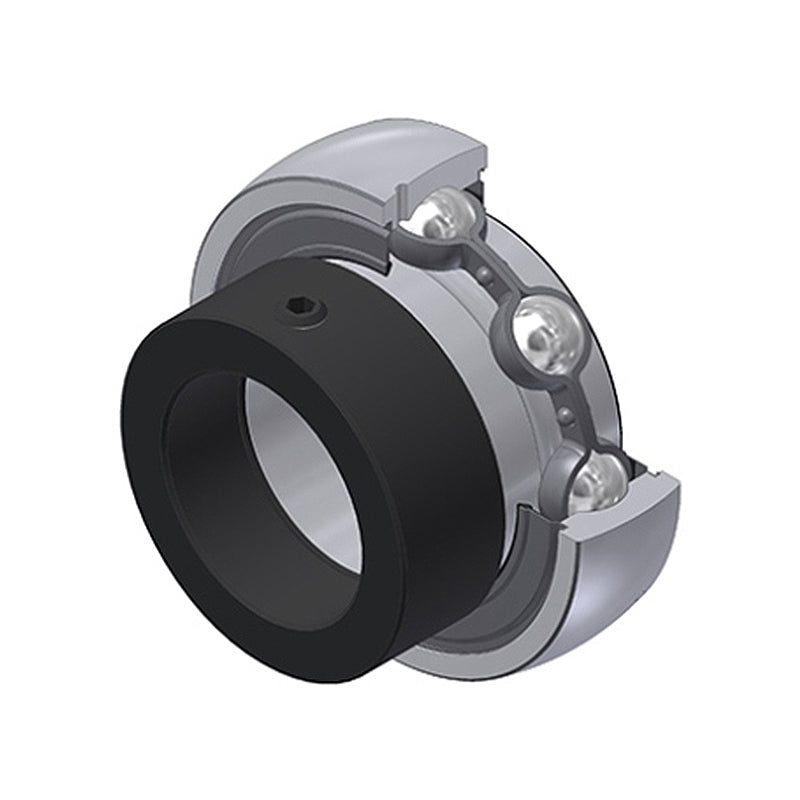

• SNR ES210G2 Metric Flatback Spherical Outer Bearing Insert 50mm Bore 90mm Outside Diameter with Eccentric Collar
1 1

SKU: ES210G2-SNR

SNR ES210G2 Metric Flatback Spherical Outer Bearing Insert 50mm Bore 90mm Outside Diameter with Eccentric Collar

SNR ES210G2 Metric Flatback Spherical Outer Bearing Insert 50mm Bore 90mm Outside Diameter with Eccentric Collar
€36,95 ex VAT
€36,95 ex VAT
Sale Sold out

Equivalent to: ES210

In stock

Price Break
3+ €27,36
5+ €25,82
9+ €25,51
19+ €25,20
49+ €24,90
74+ €24,59
99+ €23,05
199+ €22,75
249+ €22,44
499+ €22,13
999+ €21,52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UGVR8M2FWX
Brand / Quality:
SNR - High Quality
Thread Size:
M8x1
Inside Diameter:
50mm
Outside Diameter:
90mm
Width:
43.7mm
Style:
ES
Technical
d 50mm
D 90mm
C 20mm
B 30.2mm
B1 43.7mm
B2 18.3mm
d1 67.2mm
S 11mm
m 6.5mm
C1 6.5mm
r min 1.1mm
G M8x1
Wrench Size 4mm
Set screw torque 11.5 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 35.1kN
Static load rating C0 23.2kN
Weight 0.8kg
