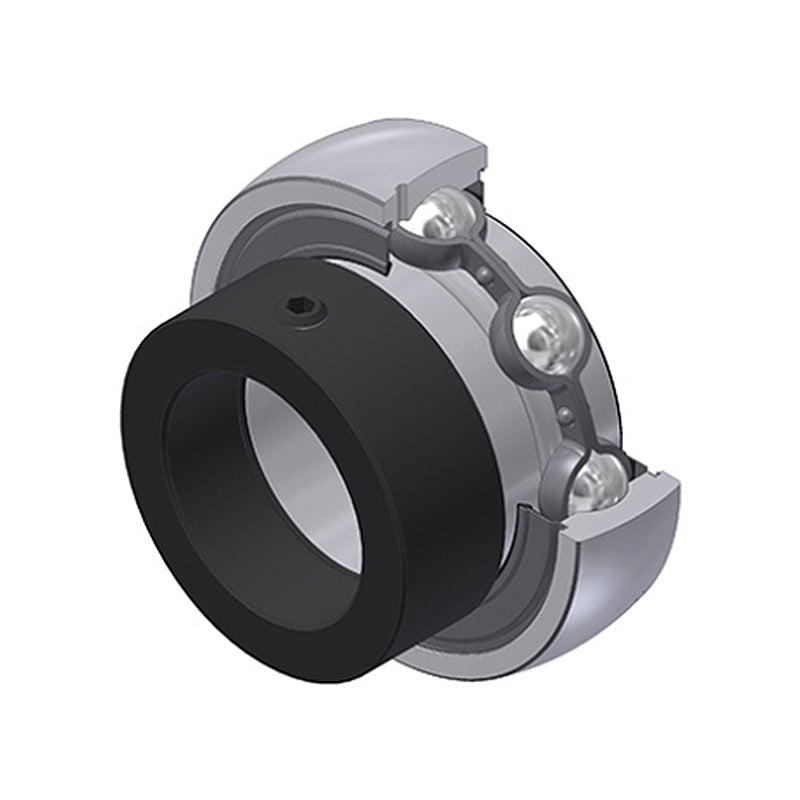

• SNR ES209G2 Metric Flatback Spherical Outer Bearing Insert 45mm Bore 85mm Outside Diameter with Eccentric Collar
1 1

SKU: ES209G2-SNR

SNR ES209G2 Metric Flatback Spherical Outer Bearing Insert 45mm Bore 85mm Outside Diameter with Eccentric Collar

SNR ES209G2 Metric Flatback Spherical Outer Bearing Insert 45mm Bore 85mm Outside Diameter with Eccentric Collar
€33,95 ex VAT
€33,95 ex VAT
Sale Sold out

Equivalent to: ES209

In stock

Price Break
3+ €25,40
5+ €23,98
9+ €23,69
19+ €23,40
49+ €23,12
74+ €22,83
99+ €21,41
199+ €21,12
249+ €20,84
499+ €20,55
999+ €19,98

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UGVR8M2FWX
Brand / Quality:
SNR - High Quality
Thread Size:
M8x1
Inside Diameter:
45mm
Outside Diameter:
85mm
Width:
43.7mm
Style:
ES
Technical
d 45mm
D 85mm
C 19mm
B 30.2mm
B1 43.7mm
B2 18.3mm
d1 62mm
S 11mm
m 6.5mm
C1 6.5mm
r min 1.1mm
G M8x1
Wrench Size 4mm
Set screw torque 11.5 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 31.9kN
Static load rating C0 20.8kN
Weight 0.7kg
