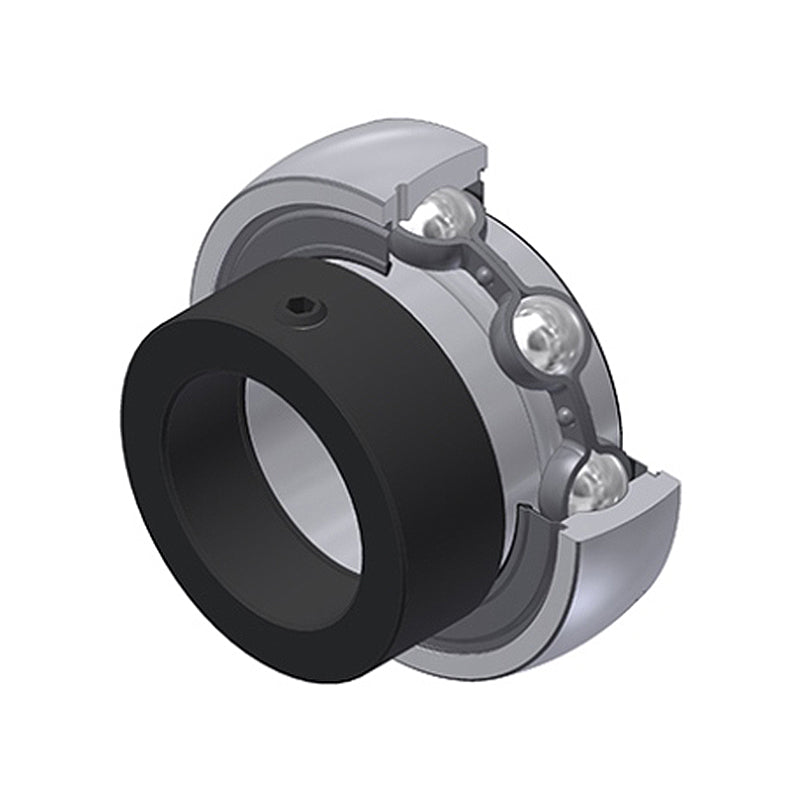

• SNR ES207-22G2 Imperial Flatback Spherical Outer Bearing Insert 1-3/8 inch Bore 72mm Outside Diameter with Eccentric Collar
1 1

SKU: ES207-22G2-SNR

SNR ES207-22G2 Imperial Flatback Spherical Outer Bearing Insert 1-3/8 inch Bore 72mm Outside Diameter with Eccentric Collar

SNR ES207-22G2 Imperial Flatback Spherical Outer Bearing Insert 1-3/8 inch Bore 72mm Outside Diameter with Eccentric Collar
€26,95 ex VAT
€26,95 ex VAT
Sale Sold out

Equivalent to: ES207-22

In stock

Price Break
3+ €20,22
5+ €19,09
9+ €18,86
19+ €18,63
49+ €18,41
74+ €18,18
99+ €17,04
199+ €16,82
249+ €16,59
499+ €16,36
999+ €15,91

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UGVR8M2FWX
Brand / Quality:
SNR - High Quality
Thread Size:
5/16-24UNF
Inside Diameter:
34.925mm = 1.375 (1-3/8) inch
Outside Diameter:
72mm
Width:
38.9mm
Style:
ES
Technical
d 1-3/8 inch
d 34.925mm
D 72mm
C 17mm
B 25.4mm
B1 38.9mm
B2 17.5mm
d1 51.1mm
S 9.5mm
m 6.5mm
C1 5.7mm
r min 1.1mm
G 5/16-24UNF
Wrench Size 5/32 inch
Set screw torque 8 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 25.7kN
Static load rating C0 15.2kN
Weight 0.5kg
