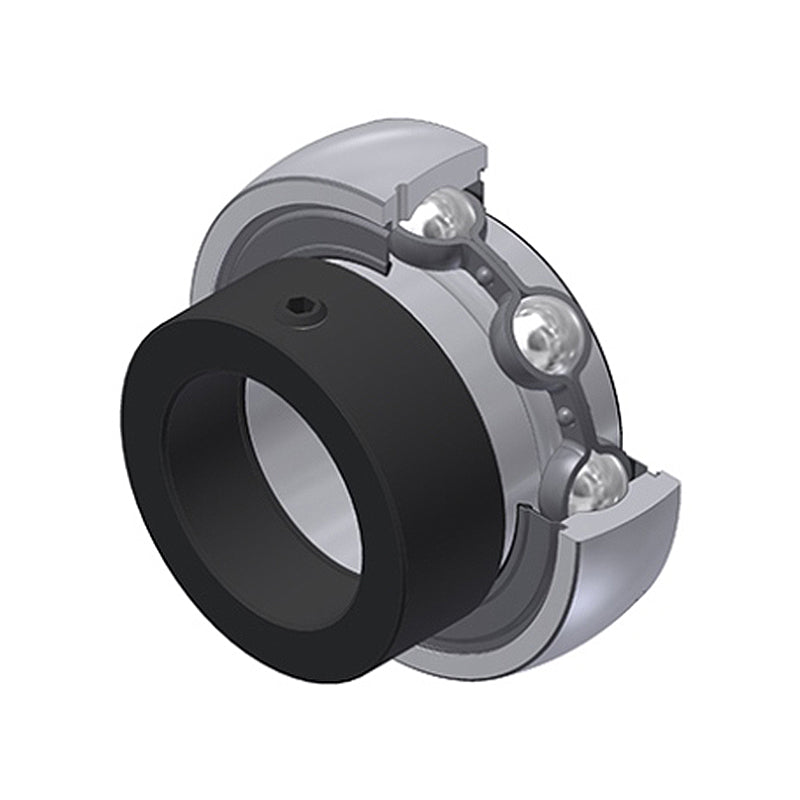

• SNR ES204G2 Metric Flatback Spherical Outer Bearing Insert 20mm Bore 47mm Outside Diameter with Eccentric Collar
1 1

SKU: ES204G2-SNR

SNR ES204G2 Metric Flatback Spherical Outer Bearing Insert 20mm Bore 47mm Outside Diameter with Eccentric Collar

SNR ES204G2 Metric Flatback Spherical Outer Bearing Insert 20mm Bore 47mm Outside Diameter with Eccentric Collar
€14,95 ex VAT
€14,95 ex VAT
Sale Sold out

Equivalent to: ES204

In stock

Price Break
3+ €11,24
5+ €10,60
9+ €10,48
19+ €10,35
49+ €10,23
74+ €10,10
99+ €9,47
199+ €9,34
249+ €9,22
499+ €9,09
999+ €8,84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UGVR8M2FWX
Brand / Quality:
SNR - High Quality
Thread Size:
M6x1
Inside Diameter:
20mm
Outside Diameter:
47mm
Width:
30.9mm
Style:
ES
Technical
d 20mm
D 47mm
C 14mm
B 21.4mm
B1 30.9mm
B2 13.5mm
d1 32.4mm
S 7.5mm
m 5mm
C1 4mm
r min 0.6mm
G M6x1
Wrench Size 3mm
Set screw torque 5.5 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 12.8kN
Static load rating C0 6.7kN
Weight 0.2kg
