SKU: EIL70DNIRO-FLURO

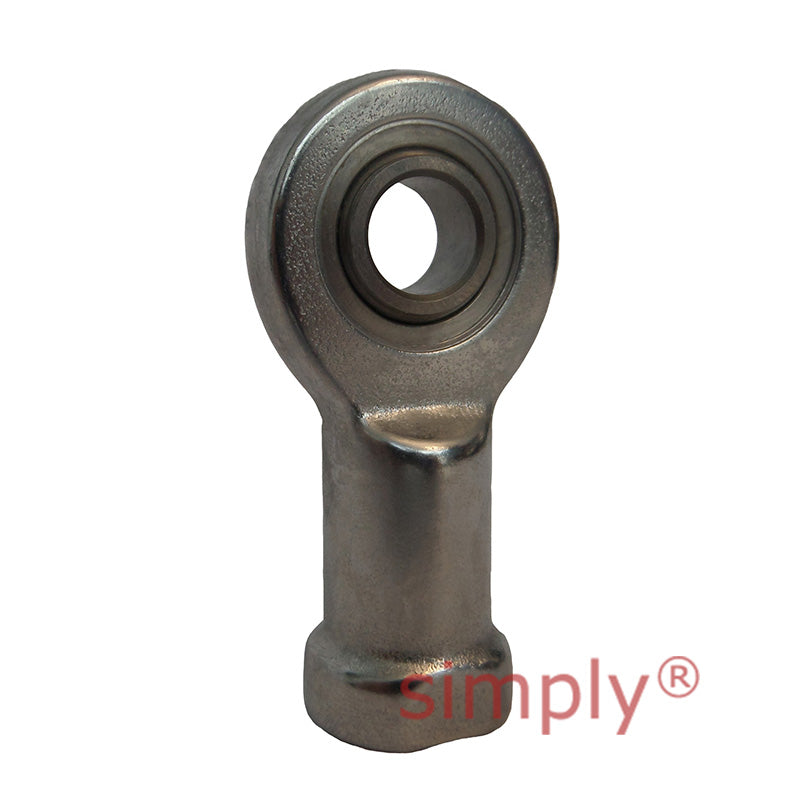

Fluro EIL70DNIRO Left Hand Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M56x4 Thread
Fluro EIL70DNIRO Left Hand Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M56x4 Thread
Out of stock
Share this product
Description
Description
Fluro EI..D-NIRO Series Zinc Plated Steel Maintenance Free Female Plain Rod Ends: Rod Ends with female thread, maintenance free, made from stainless steel with maintenance free Spherical Plain Bearings GE..EC-NIRO. For use at high unidirectional loads, in corrosive environments and limited fitting dimensions
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M56x4
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Thread Length:
- 56x4mm
- Inside Diameter:
- 70mm
- Material:
- Stainless Steel / PTFE Lined
Technical
Technical
| Bore Size D | 70mm |
|---|---|
| B | 49mm |
| M | 42mm |
| A | 160mm |
| F | 200mm |
| L | 280mm |
| K | 98mm |
| J | 80mm |
| O | 77.9mm |
| SW | 85mm |
| Thread Size G | M56x4 |
| GL | 80mm |
| Static Load Co | 459kN |
| Dynamic Load | 619kN |
| Approx weight | 8.6kg |
