SKU: EIL40DNIRO-FLURO

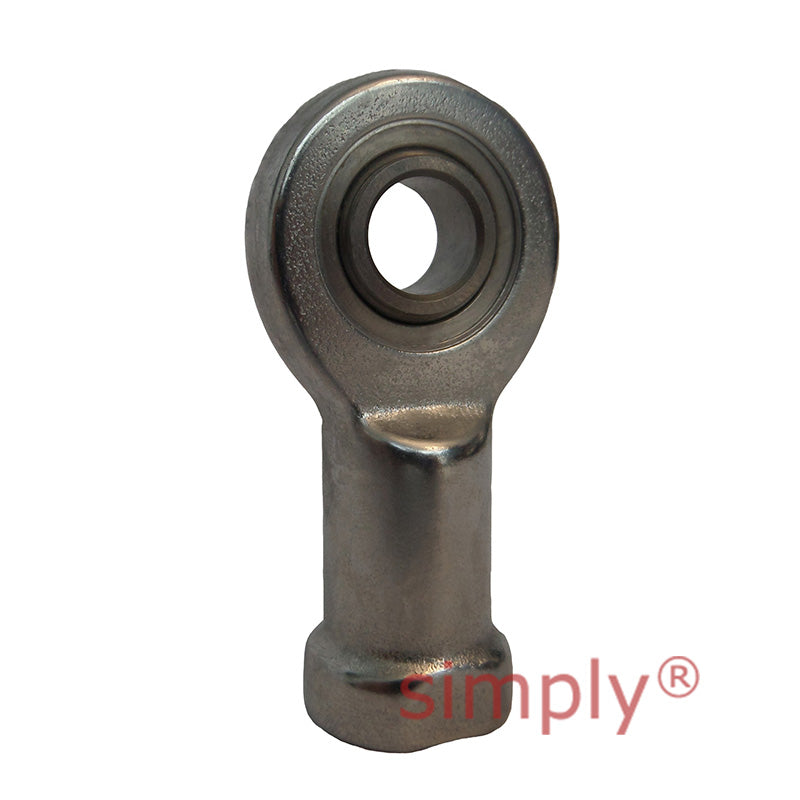

Fluro EIL40DNIRO Left Hand Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M39x3 Thread
Fluro EIL40DNIRO Left Hand Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M39x3 Thread
Out of stock
Share this product
Description
Description
Fluro EI..D-NIRO Series Zinc Plated Steel Maintenance Free Female Plain Rod Ends: Rod Ends with female thread, maintenance free, made from stainless steel with maintenance free Spherical Plain Bearings GE..EC-NIRO. For use at high unidirectional loads, in corrosive environments and limited fitting dimensions
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M39x3
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Thread Length:
- 39x3mm
- Inside Diameter:
- 40mm
- Material:
- Stainless Steel / PTFE Lined
Technical
Technical

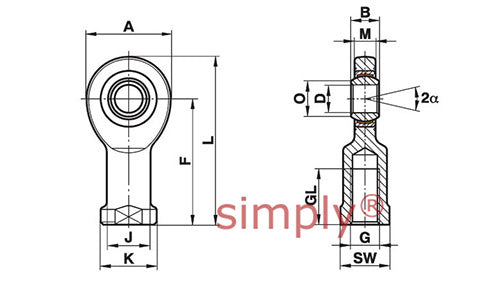

| Bore Size D | 40mm |
|---|---|
| B | 28mm |
| M | 23mm |
| A | 92mm |
| F | 142mm |
| L | 188mm |
| K | 65mm |
| J | 52mm |
| O | 45mm |
| SW | 55mm |
| Thread Size G | M39x3 |
| GL | 65mm |
| Static Load Co | 135kN |
| Dynamic Load | 190kN |
| Approx weight | 2kg |
