SKU: EIL35DNIRO-FLURO

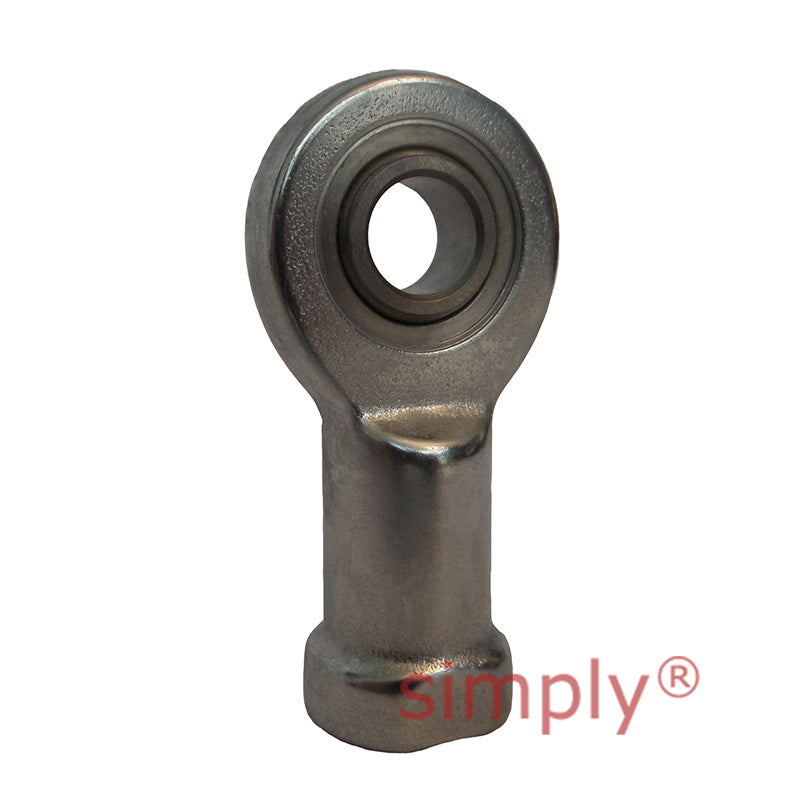

Fluro EIL35DNIRO Left Hand Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M36x3 Thread
Fluro EIL35DNIRO Left Hand Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M36x3 Thread
Out of stock
Share this product
Description
Description
Fluro EI..D-NIRO Series Zinc Plated Steel Maintenance Free Female Plain Rod Ends: Rod Ends with female thread, maintenance free, made from stainless steel with maintenance free Spherical Plain Bearings GE..EC-NIRO. For use at high unidirectional loads, in corrosive environments and limited fitting dimensions
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M36x3
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Thread Length:
- 36x3mm
- Inside Diameter:
- 35mm
- Material:
- Stainless Steel / PTFE Lined
Technical
Technical
| Bore Size D | 35mm |
|---|---|
| B | 25mm |
| M | 21mm |
| A | 82mm |
| F | 125mm |
| L | 166mm |
| K | 58mm |
| J | 47mm |
| O | 39.8mm |
| SW | 50mm |
| Thread Size G | M36x3 |
| GL | 60mm |
| Static Load Co | 111kN |
| Dynamic Load | 153kN |
| Approx weight | 1.3kg |
