SKU: EIL16DNIRO-FLURO

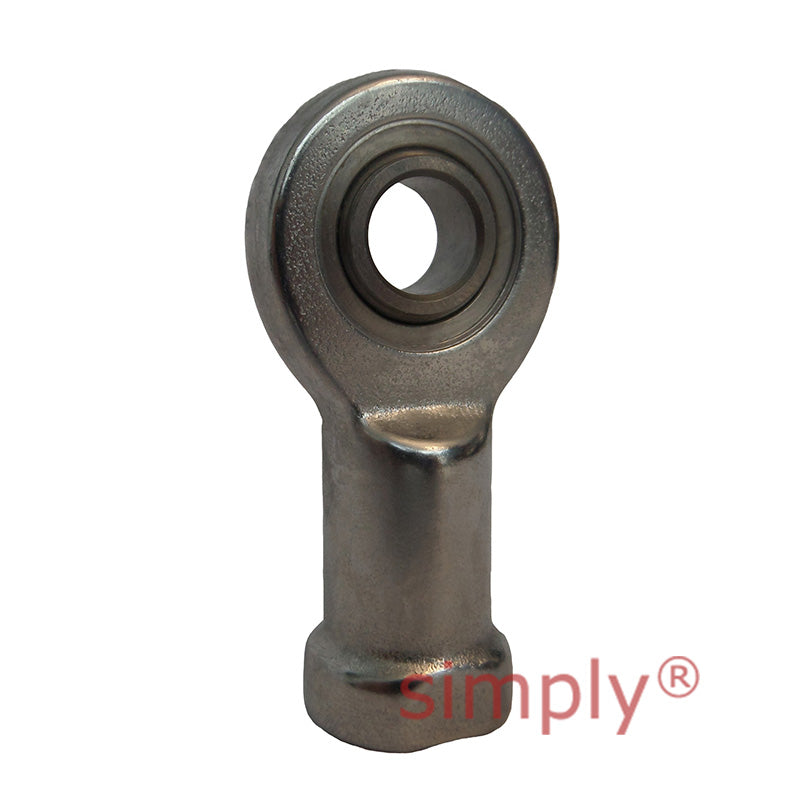

Fluro EIL16DNIRO Left Hand Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M16 Thread
Fluro EIL16DNIRO Left Hand Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M16 Thread
Out of stock
Share this product
Description
Description
Fluro EI..D-NIRO Series Zinc Plated Steel Maintenance Free Female Plain Rod Ends: Rod Ends with female thread, maintenance free, made from stainless steel with maintenance free Spherical Plain Bearings GE..EC-NIRO. For use at high unidirectional loads, in corrosive environments and limited fitting dimensions
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M16
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Thread Length:
- 16mm
- Inside Diameter:
- 16mm
- Material:
- Stainless Steel / PTFE Lined
Technical
Technical
| Bore Size D | 16mm |
|---|---|
| B | 14mm |
| M | 11mm |
| A | 46mm |
| F | 67mm |
| L | 90mm |
| K | 30mm |
| J | 24mm |
| O | 20.7mm |
| SW | 27mm |
| Thread Size G | M16 |
| GL | 33mm |
| Static Load Co | 34kN |
| Dynamic Load | 39kN |
| Approx weight | 0.22kg |
Reviews
Reviews
☆☆☆☆☆ (0 total reviews)
