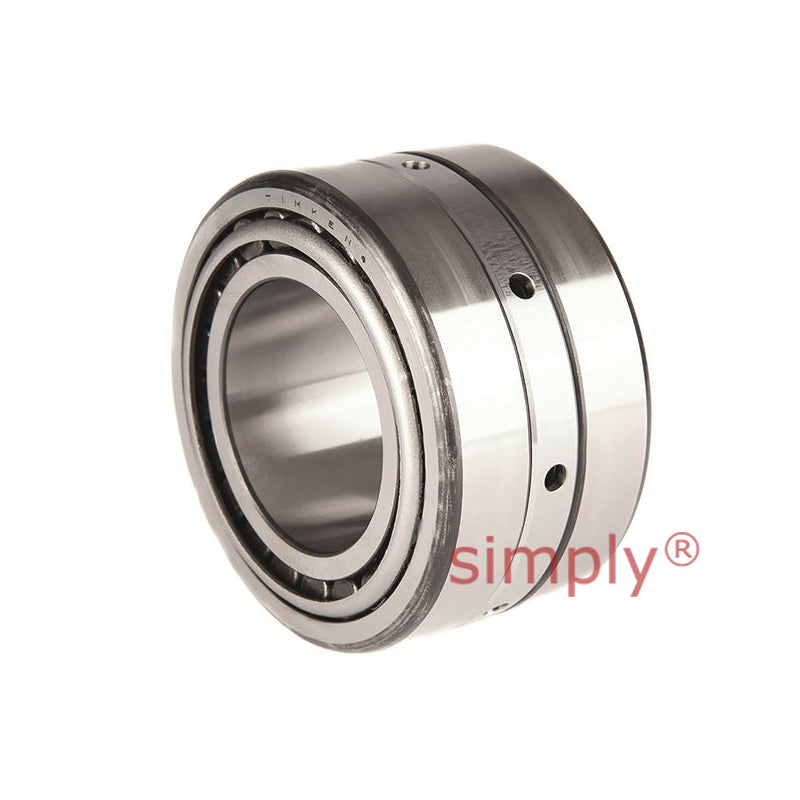

Timken EE833161XD/833232/Y1S-833232 TDI Double Inner Race Taper Roller Bearing 16x23.25x7.625x7.625 inch
Timken EE833161XD/833232/Y1S-833232 TDI Double Inner Race Taper Roller Bearing 16x23.25x7.625x7.625 inch
Out of stock
Description
Description

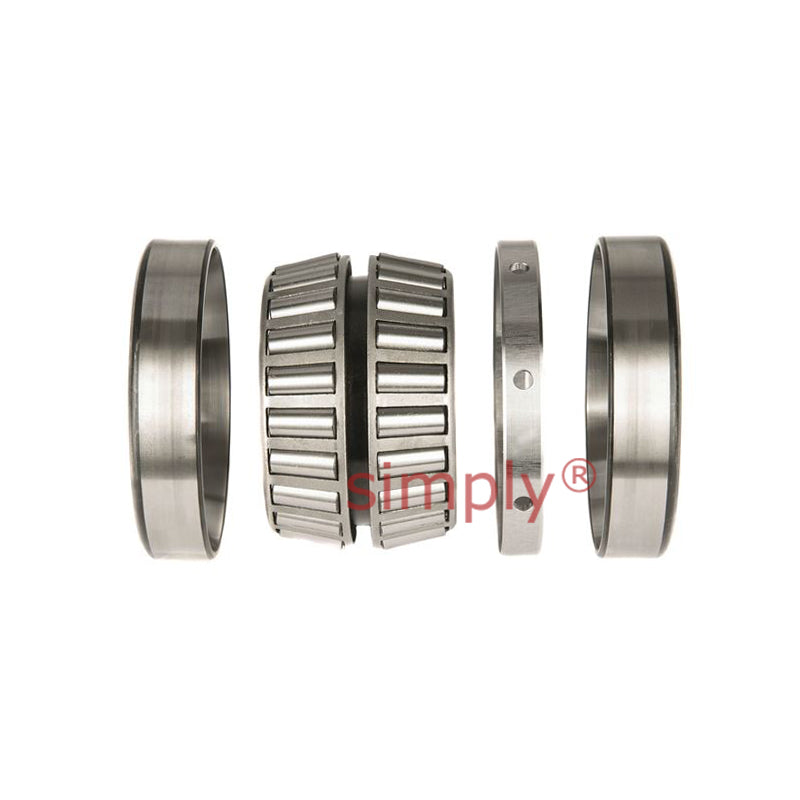

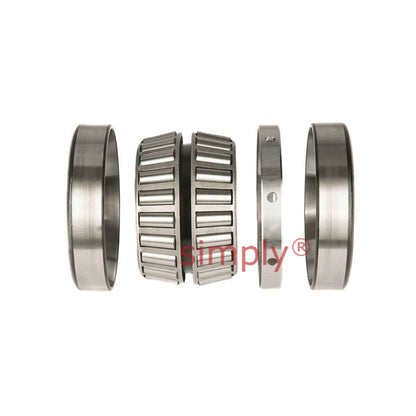

Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 406.4mm = 16 inch
- Outside Diameter:
- 590.55mm = 23.25 (23-1/4) inch
- Width:
- 193.68mm = 7.625 (7-5/8) inch
Technical
Technical
| d | 406.4mm = 16 inch |
|---|---|
| D | 590.55mm = 23.25 inch |
| T | 193.675mm = 7.625 inch |
| C | 193.675mm = 7.625 inch |
| Dynamic (1) C1 | 3940000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.08 |
| Factors (5) Y2 | 3.09 |
| Dynamic (2) C90 | 587000N |
| Dynamic (2) Ca90 | 327000N |
| Dynamic (2) C90(2) | 1020000N |
| Factors (5) K | 1.8 |
| Shaft max shaft fillet radius R (3) | 3.3mm = 0.13 inch |
| Shaft backing shoulder diameter da | 435mm = 17.13 inch |
| Housing max shaft fillet radius r (3) | 6.4mm = 0.25 inch |
| Housing backing shoulder diameter Db | 549mm = 21.61 inch |
| G1 | 4960 |
| G2 | 446 |
| Cg | 0.2186 |
