SKU: EE433301D/433512-TIM

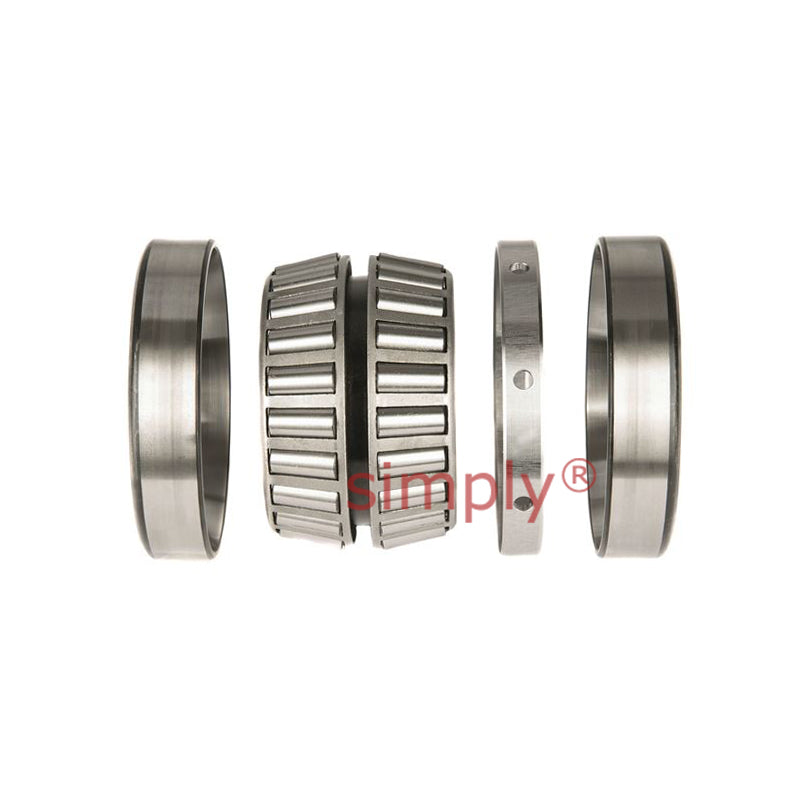

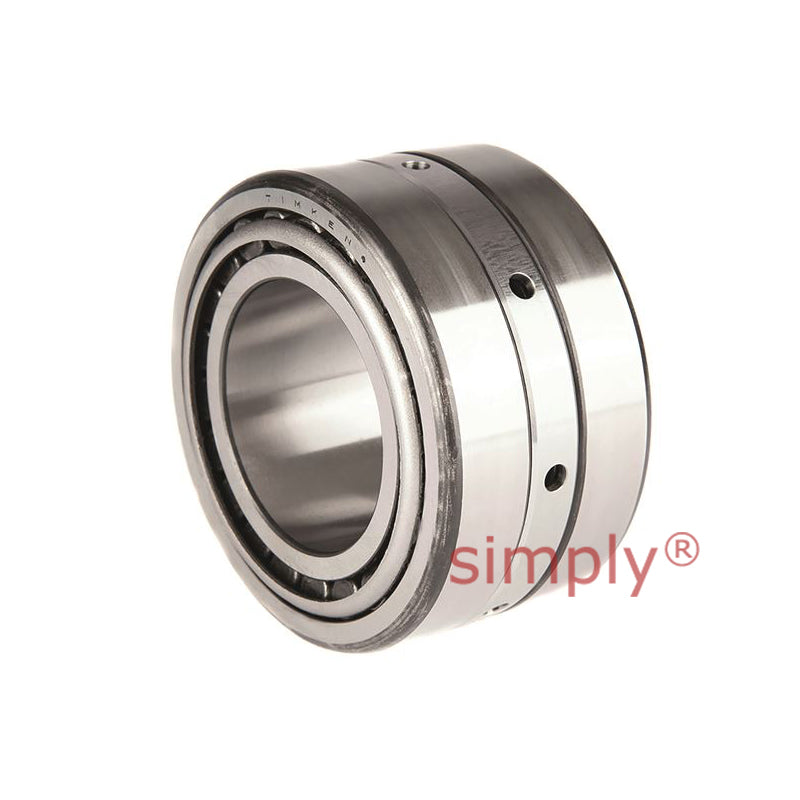

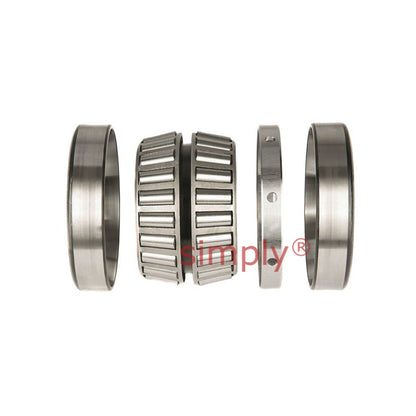

Timken EE433301D/433512 TDI Two-Row Taper Roller Bearing 30x51x12.2501x12.25 inch
Timken EE433301D/433512 TDI Two-Row Taper Roller Bearing 30x51x12.2501x12.25 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 762mm = 30 inch
- Outside Diameter:
- 1295.4mm = 51 inch
- Width:
- 311.15mm = 12.25 (12-1/4) inch
Technical
Technical
| d | 762mm = 30 inch |
|---|---|
| D | 1295.4mm = 51 inch |
| T | 311.153mm = 12.2501 inch |
| C | 311.15mm = 12.25 inch |
| Dynamic (1) C1 | 12700000N |
| Factors (5) e | 0.38 |
| Factors (5) Y1 | 1.76 |
| Factors (5) Y2 | 2.62 |
| Dynamic (2) C90 | 1890000N |
| Dynamic (2) Ca90 | 1240000N |
| Dynamic (2) C90(2) | 3290000N |
| Factors (5) K | 1.52 |
| Shaft max shaft fillet radius R (3) | 6.4mm = 0.25 inch |
| Shaft backing shoulder diameter da | 852mm = 33.54 inch |
| Housing max shaft fillet radius r (3) | 6.4mm = 0.25 inch |
| Housing backing shoulder diameter Db | 1210mm = 47.64 inch |
| G1 | 22200 |
| G2 | 957 |
| Cg | 0.376 |
