SKU: EE234157D/234220/Y1S-234220-TIM

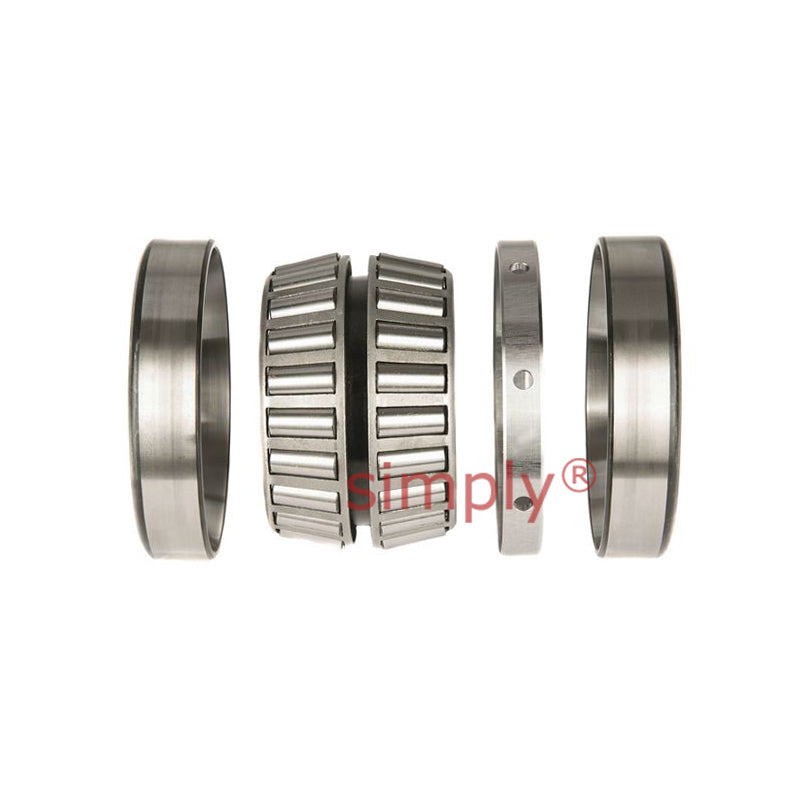

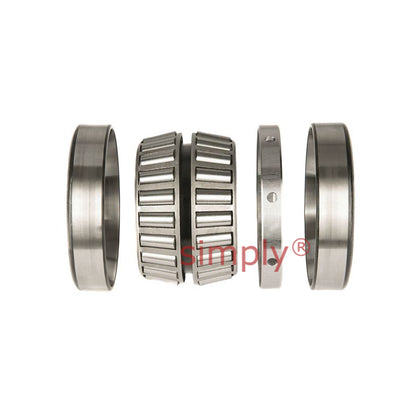

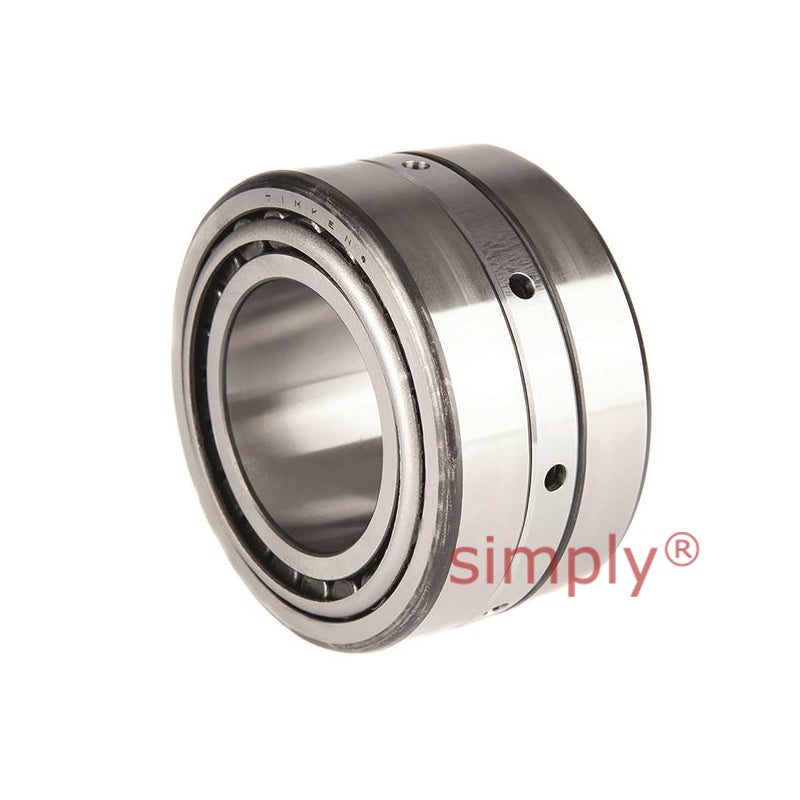

Timken EE234157D/234220/Y1S-234220 TDI Double Inner Race Taper Roller Bearing 15.5x22x4.6875x4.75 inch
Timken EE234157D/234220/Y1S-234220 TDI Double Inner Race Taper Roller Bearing 15.5x22x4.6875x4.75 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 393.7mm = 15.5 (15-1/2) inch
- Outside Diameter:
- 558.8mm = 22 inch
- Width:
- 119.06mm = 4.687 (4-11/16) inch
Technical
Technical
| d | 393.7mm = 15.5 inch |
|---|---|
| D | 558.8mm = 22 inch |
| T | 119.062mm = 4.6875 inch |
| C | 120.65mm = 4.75 inch |
| Dynamic (1) C1 | 1620000N |
| Factors (5) e | 0.48 |
| Factors (5) Y1 | 1.42 |
| Factors (5) Y2 | 2.11 |
| Dynamic (2) C90 | 241000N |
| Dynamic (2) Ca90 | 196000N |
| Dynamic (2) C90(2) | 419000N |
| Factors (5) K | 1.23 |
| Shaft max shaft fillet radius R (3) | 3.3mm = 0.13 inch |
| Shaft backing shoulder diameter da | 420mm = 16.54 inch |
| Housing max shaft fillet radius r (3) | 6.4mm = 0.25 inch |
| Housing backing shoulder diameter Db | 516mm = 20.31 inch |
| G1 | 2780 |
| G2 | 448 |
| Cg | 0.2018 |
