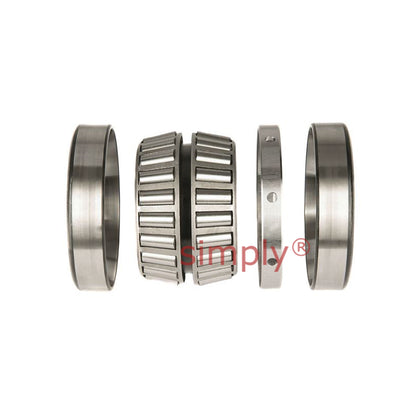

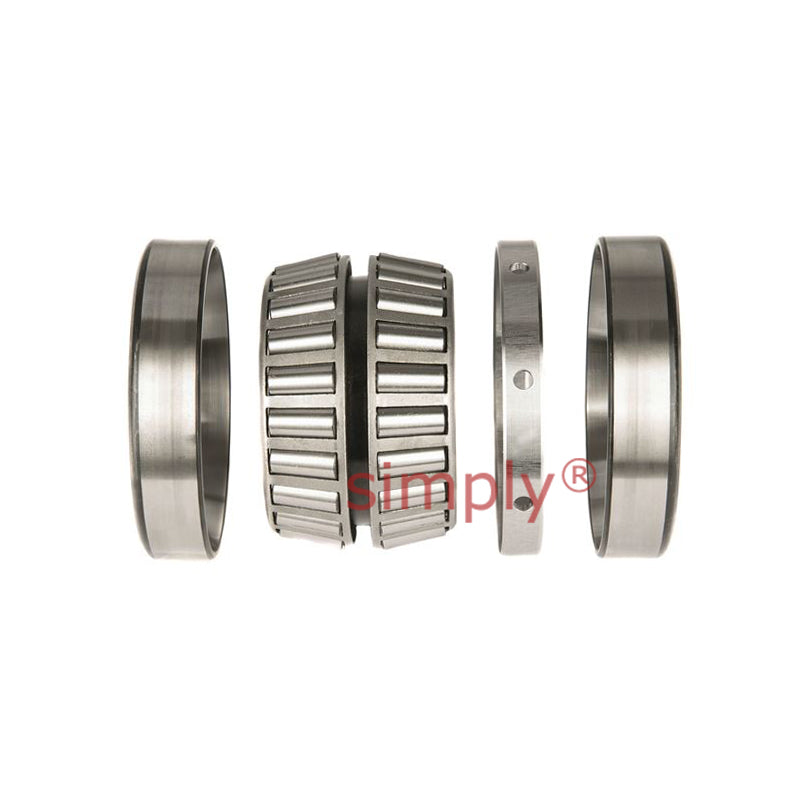

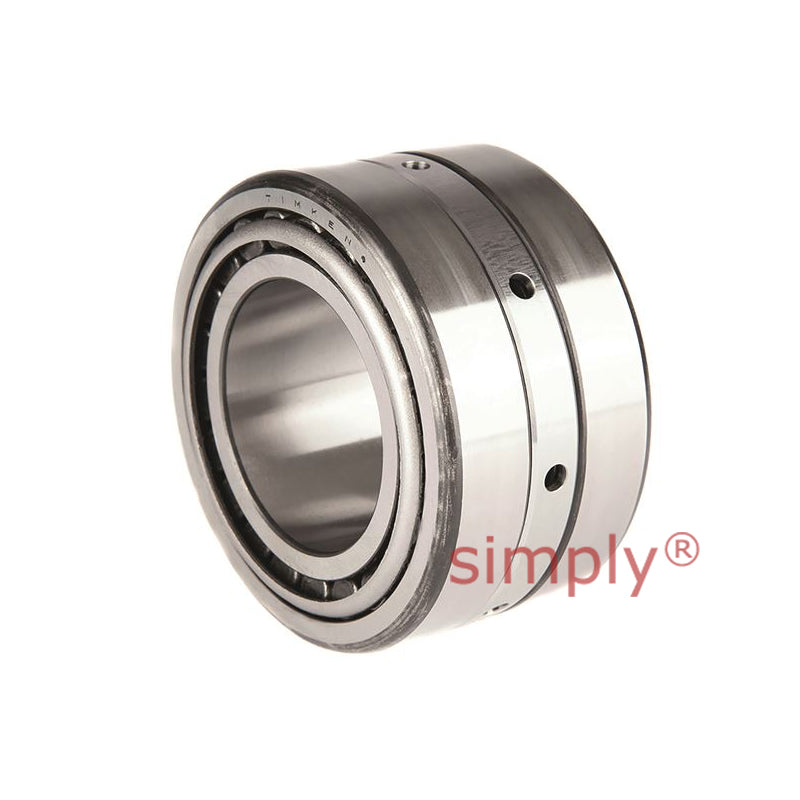

Timken EE171000D/171436/Y2S-171436 TDI Double Inner Race Taper Roller Bearing 10x14.372x3.65x3.656 inch
Timken EE171000D/171436/Y2S-171436 TDI Double Inner Race Taper Roller Bearing 10x14.372x3.65x3.656 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 254mm = 10 inch
- Outside Diameter:
- 365.05mm = 14.372 inch
- Width:
- 92.71mm = 3.65 inch
Technical
Technical
| d | 254mm = 10 inch |
|---|---|
| D | 365.049mm = 14.372 inch |
| T | 92.71mm = 3.65 inch |
| C | 92.862mm = 3.656 inch |
| Dynamic (1) C1 | 956000N |
| Factors (5) e | 0.36 |
| Factors (5) Y1 | 1.86 |
| Factors (5) Y2 | 2.77 |
| Dynamic (2) C90 | 142000N |
| Dynamic (2) Ca90 | 88500N |
| Dynamic (2) C90(2) | 248000N |
| Factors (5) K | 1.61 |
| Shaft max shaft fillet radius R (3) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 269mm = 10.59 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 338mm = 13.31 inch |
| G1 | 1070 |
| G2 | 172 |
| Cg | 0.1354 |
