SKU: EAL302RS-FLURO

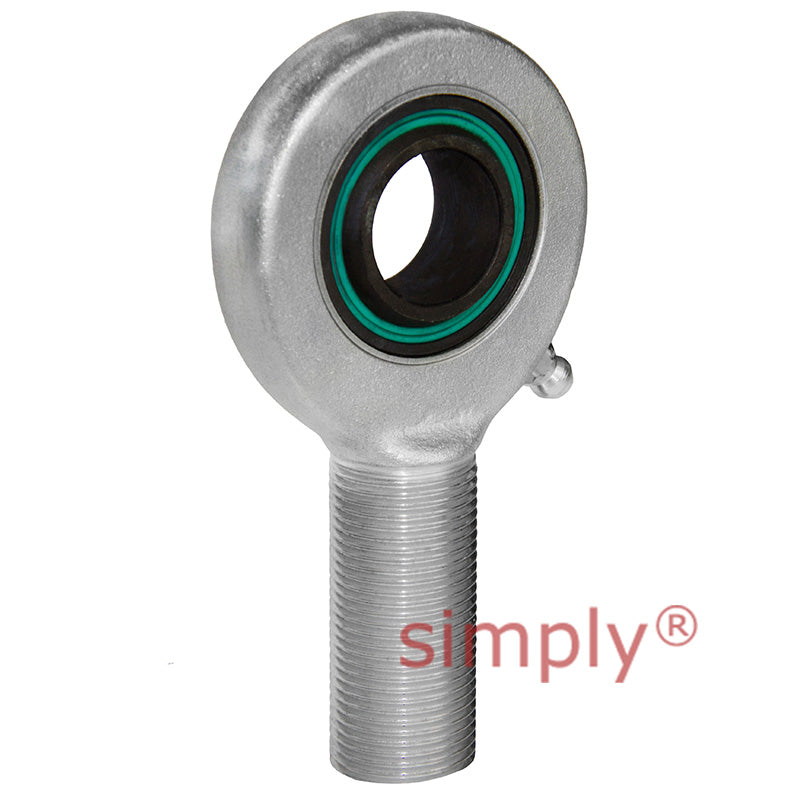

Fluro EAL302RS Left Hand Zinc Plated Steel / Steel Male Plain Rod End M30x2 Thread
Fluro EAL302RS Left Hand Zinc Plated Steel / Steel Male Plain Rod End M30x2 Thread
Out of stock
Share this product
Description
Description
Fluro EA (-2RS) Series Zinc Plated Steel Maintenance Required Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel zinc plated, with steel on steel Spherical Plain Bearings which require lubrication. For use at high multidirectional loads and limited fitting dimensions
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M30x2
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Thread Length:
- 30x2mm
- Inside Diameter:
- 30mm
- Material:
- Steel / Steel
Technical
Technical

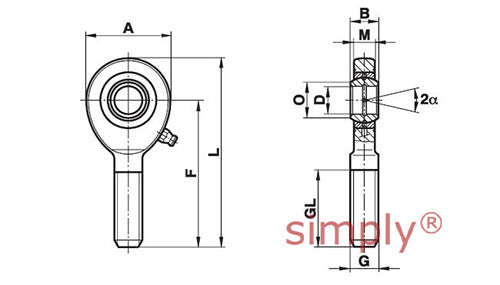

| Bore Size D | 30mm |
|---|---|
| B | 22mm |
| M | 19mm |
| A | 73mm |
| F | 110mm |
| L | 146.5mm |
| O | 34.2mm |
| Thread Size G | M30x2 |
| GL | 65mm |
| Static Load Co | 124kN |
| Dynamic Load | 62kN |
| Approx weight | 0.89kg |
