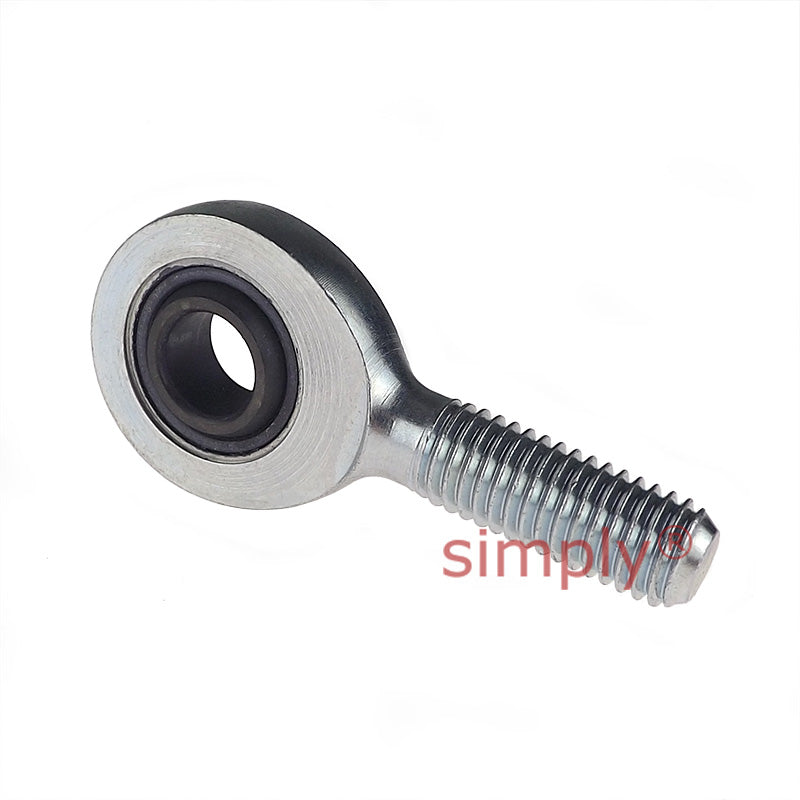

Fluro EA15 Right Hand Zinc Plated Steel / Steel Male Plain Rod End M14 Thread
Fluro EA15 Right Hand Zinc Plated Steel / Steel Male Plain Rod End M14 Thread
Out of stock
Share this product
Description
Description
Fluro EA (-2RS) Series Zinc Plated Steel Maintenance Required Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel zinc plated, with steel on steel Spherical Plain Bearings which require lubrication. For use at high multidirectional loads and limited fitting dimensions
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M14
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Thread Length:
- 14mm
- Inside Diameter:
- 15mm
- Material:
- Steel / Steel
Technical
Technical
| Bore Size D | 15mm |
|---|---|
| B | 12mm |
| M | 10mm |
| A | 40mm |
| F | 63mm |
| L | 83mm |
| O | 18.4mm |
| Thread Size G | M14 |
| GL | 34mm |
| Static Load Co | 39.5kN |
| Dynamic Load | 17kN |
| Approx weight | 0.14kg |
