SKU: DKR45-10-16-FLEX

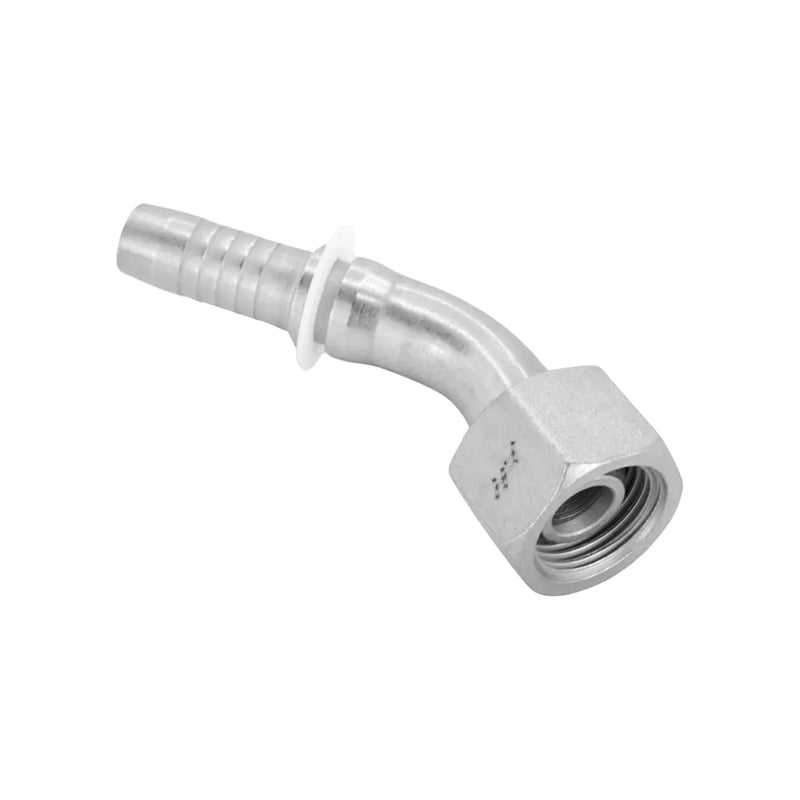

FLEXEQUIP/VOSS 5/8 inch BSP Female Two Piece Hose Fitting with 45 Degree Angle and 32mm Crimp Nut - Allow 2-3 Days
Out of stock
Description
FLEXEQUIP/VOSS Female Two Piece Hose Fitting with 45 Degree Angle and Crimp Nut: These hose fittings are widely used fitting in the UK and Ireland, ideal for agricultural and standard hydraulic applications. Designed with a BSP thread and a 60 degree tapered cone, it meets ISO 12151-6 (ISO 8434-6) standards, ensuring reliable, leak-free connections. Precision-engineered for perfect alignment between fittings and couplings, this fitting delivers exceptional durability, assembly reliability, and versatility. Built on decades of expertise, it guarantees efficient hydraulic system performance by preventing leakage and ensuring long-term functionality.
Benefits: Precision engineered, provide perfect alignment, leakage and assembly reliability
- Brand / Quality:
- FLEXEQUIP/VOSS - High Quality
- Thread Size:
- 5/8 inch BSP
- Length:
- 96mm
- Type:
- DKR
- Angle:
- 45 degrees

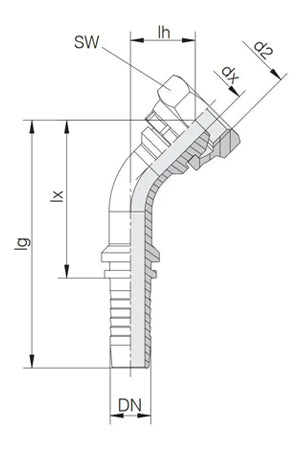

Technical
| Hose Bore | 5/8 inch |
|---|---|
| Thread (d2) | G 5/8 inch |
| DN Size | 16mm |
| Total Length (lg) | 96mm |
| Length (lh) | 25mm |
| Cut Off (lx) | 62mm |
| Bore Size (dx) | 13mm |
| Nut Size (SW) | 30mm |
| Angle | 45 degrees |
| Weight | 0.191 kg |
