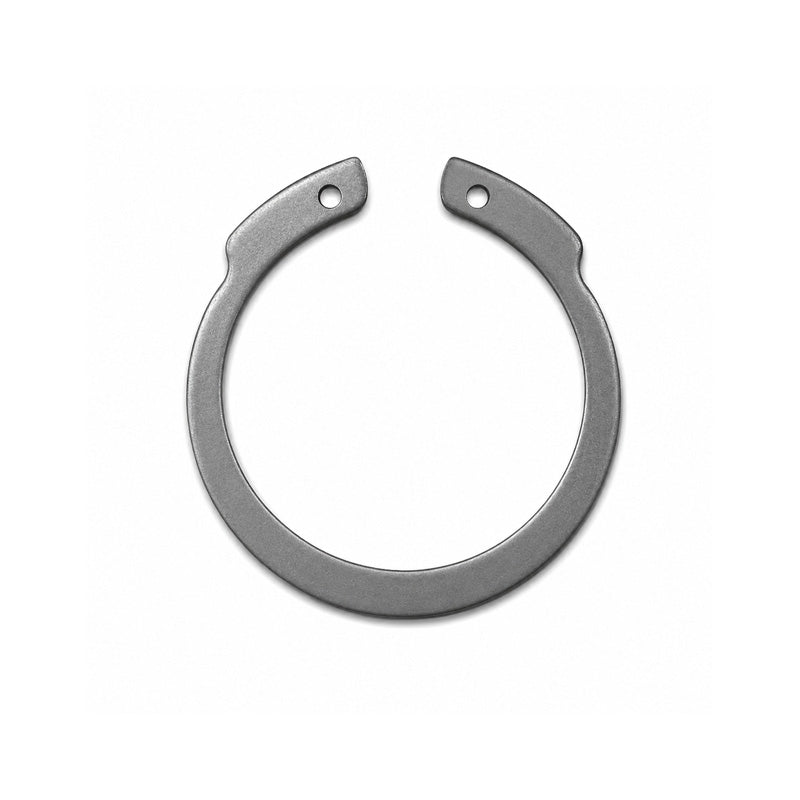

Inverted Internal Circlip 22mm Diameter Un-Sprung Diameter 23.5mm

Inverted Internal Circlips: These circlips are axially assembled and suitable for bores with grooves.
This circlip has a large free diameter and gap width, consequently, it fits more tightly into the groove and provides higher and more uniform thrust load capacity. The lugs on these circlips are "reversed" and have a reduced distance between the lugs.
Benefits: Cost effective replacement, durable, removable.

Brand / Quality:

Simply Circlips - Economy Quality

Bore:

22mm

Outside Diameter:

23.5mm

Depth:

0.5mm

Thickness:

1mm
