SKU: DGK50SK-DURB

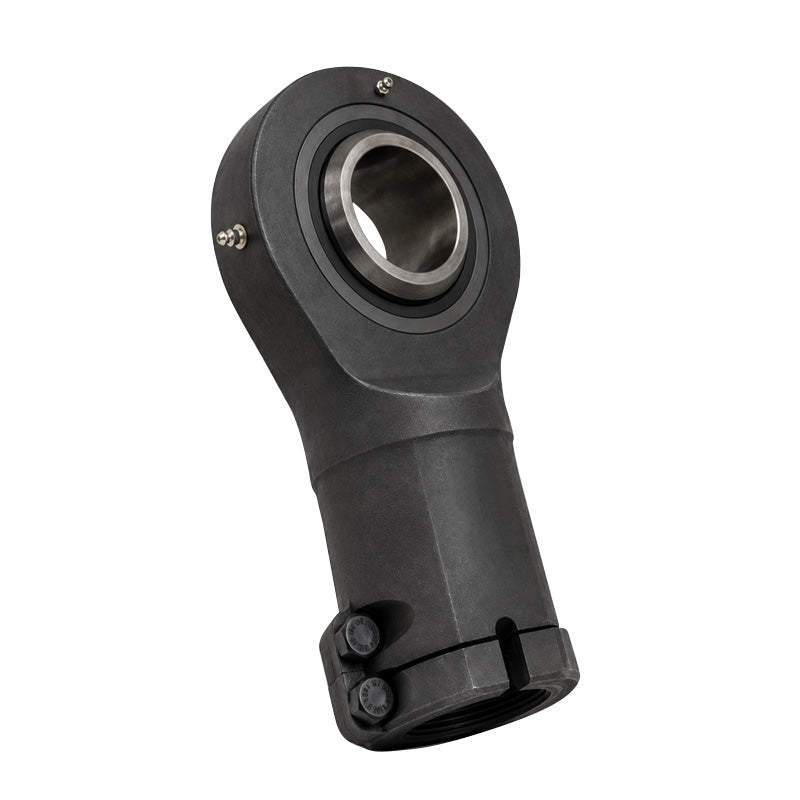

Durbal DGK50SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M50x3 Thread
Durbal DGK50SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M50x3 Thread
Out of stock
Description
Description
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M50x3
- Thread M / F:
- Female
- Inside Diameter:
- 32mm
Technical
Technical
| d | 50mm |
|---|---|
| d1 | 56mm |
| d2 | 116mm |
| d4 | 70mm |
| d5 | 88mm |
| dk | 66mm |
| G (Thread) | M50x3mm |
| B | 40mm |
| C1 | 35mm |
| C2 | 36mm |
| l3 | 75mm |
| l4 | 198mm |
| l7 | 55mm |
| h1 | 135mm |
| tilt angle α | 7 deg |
| weight | 4.1kg |
| basic load rating dyn C | 124.8 kN |
| basic load rating stat Co | 356 kN |
| radial clearance CN | 8-120 µm |
