SKU: DGEZ120ES-DURB

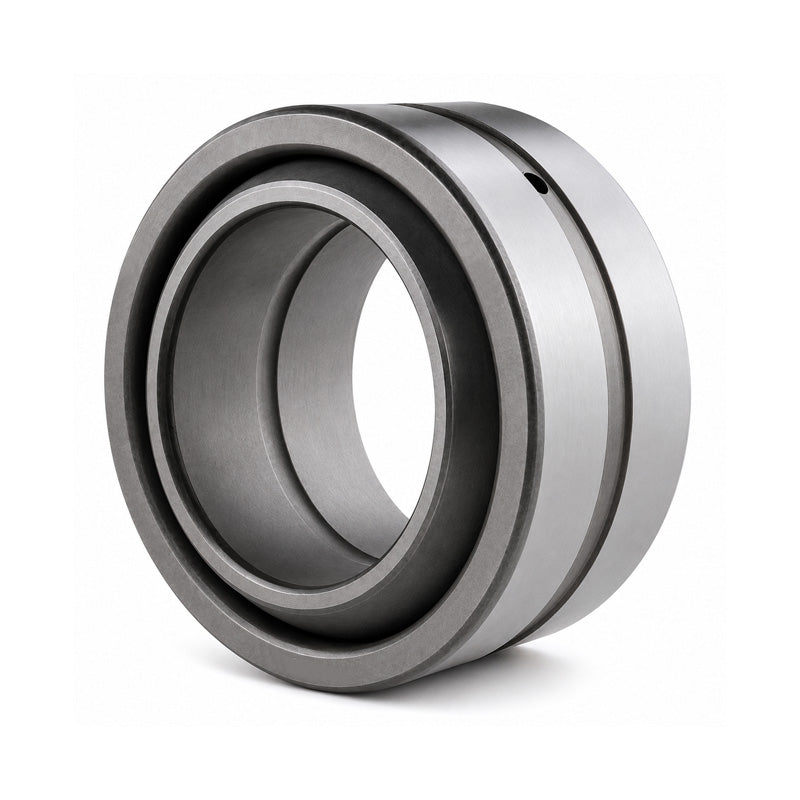

Durbal DGEZ120ES Maintenance Required Steel / Steel Imperial Spherical Plain Bearing 4-3/4x5-27/64x7-3/8 inch
Durbal DGEZ120ES Maintenance Required Steel / Steel Imperial Spherical Plain Bearing 4-3/4x5-27/64x7-3/8 inch
Out of stock
Share this product
Description
Description
DURBAL Maintenance Required Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with split, oil groove and drill holes. (Outer ring has a split from size 15) For use with high and alternating loads. Temperature range: -40 deg C to +200 deg C.
Note: Single Split outer ring from size 15
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 120.65mm = 4.75 (4-3/4) inch
Technical
Technical
| d | 120.65mm = 4-3/4inch |
|---|---|
| d1 | 137.7mm |
| D | 187.33mm |
| dk | 173.5mm |
| B | 105.56mm |
| C | 90.475mm |
| rs | 1mm |
| r1s | 1mm |
| tilt angle α | 6 deg |
| weight | 11.5kg |
| basic load rating dyn C | 1250 kN |
| basic load rating stat Co | 3750 kN |
| CN | 130-230 µm |
