SKU: DGE900ES-2RS-DURB

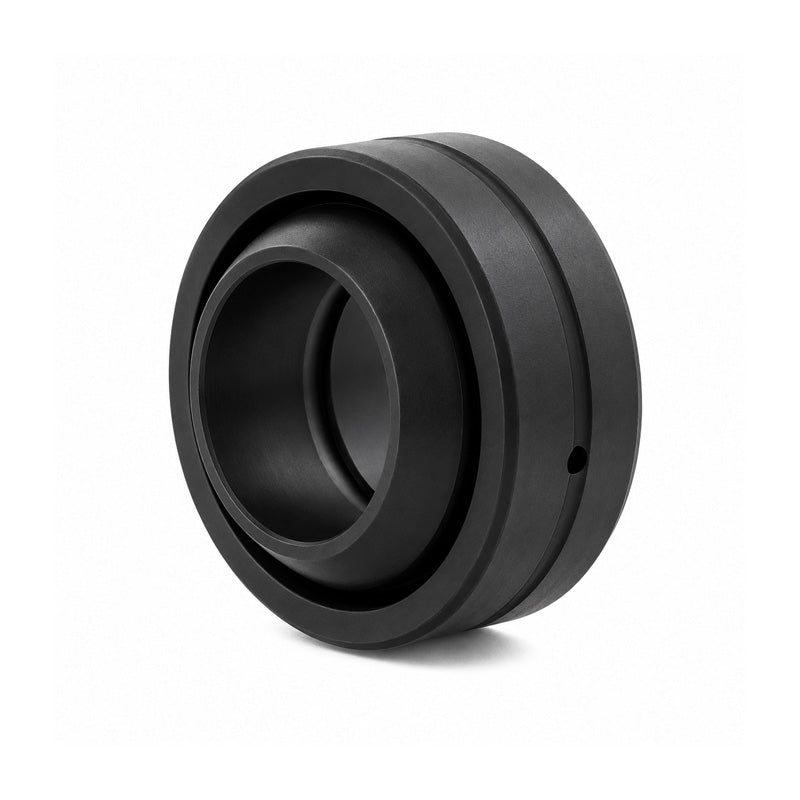

Durbal DGE900ES-2RS Maintenance Required Steel / Steel XXL Large Radial Spherical Plain Bearing with Seals 900x1180x375mm
Durbal DGE900ES-2RS Maintenance Required Steel / Steel XXL Large Radial Spherical Plain Bearing with Seals 900x1180x375mm
Equivalent to: GE900DO2RS GE900ES2RS
Out of stock
Share this product
Description
Description
DURBAL Maintenance Required XXL-Large-Radial-Spherical-Plain Bearing with Seals - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with oil groove and drill holes and 2RS lip seals on both sides. For use with high static and alternating loads and for shock loads. Temperature range: -40 deg C to +200 deg C.
Benefits: 2RS lip seals on both sides prevent the penetration of coarse dirt particles inside the bearing.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 900mm
Technical
Technical
| d | 900mm |
|---|---|
| d1 | 970mm |
| D | 1180mm |
| dk | 1040mm |
| B | 375mm |
| C | 320mm |
| rs | 3mm |
| r1s | 6mm |
| tilt angle α | 3.2 deg |
| weight | 1184kg |
| basic load rating dyn C | 28288 kN |
| basic load rating stat Co | 141440 kN |
| CN | 195-405 µm |
