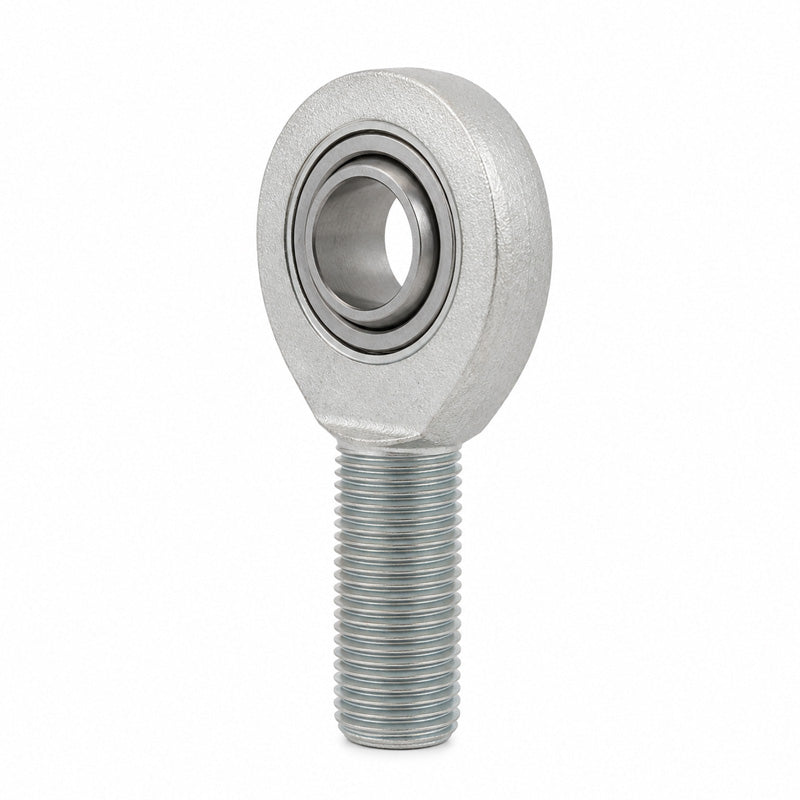

Durbal DGAR12-UK Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M12 Thread

DURBAL Standard Male Rod Ends with Pressed Spherical-Plain Bearing: Threaded male rod end consisting of a galvanised, forged, heat-treated steel housing with a heat-treated steel outer ring, lined with bronze - PTFE composite and a steel joint ball bearing (Hard chromium plated up to size 12). Suitable for use with unilaterally acting loads. Rod ends made of forged and heat-treated steel, which protects against corrosion by galvanisation. Sliding combination: heat-treated steel with bronze - PTFE - composite. Joint ball of ball bearing steel, hardened, ground, polished and, up to size 12 with hard-chrome plated running surface, giving effective protection against corrosion. Temperature range: -40 deg C to +200 deg C.

Brand / Quality:

Durbal - High Quality

Thread Size:

M12

Thread M / F:

Male

Thread Direction:

Right Hand

Inside Diameter:

12mm

Material:

PTFE Lined
