SKU: DG06PW-DURB

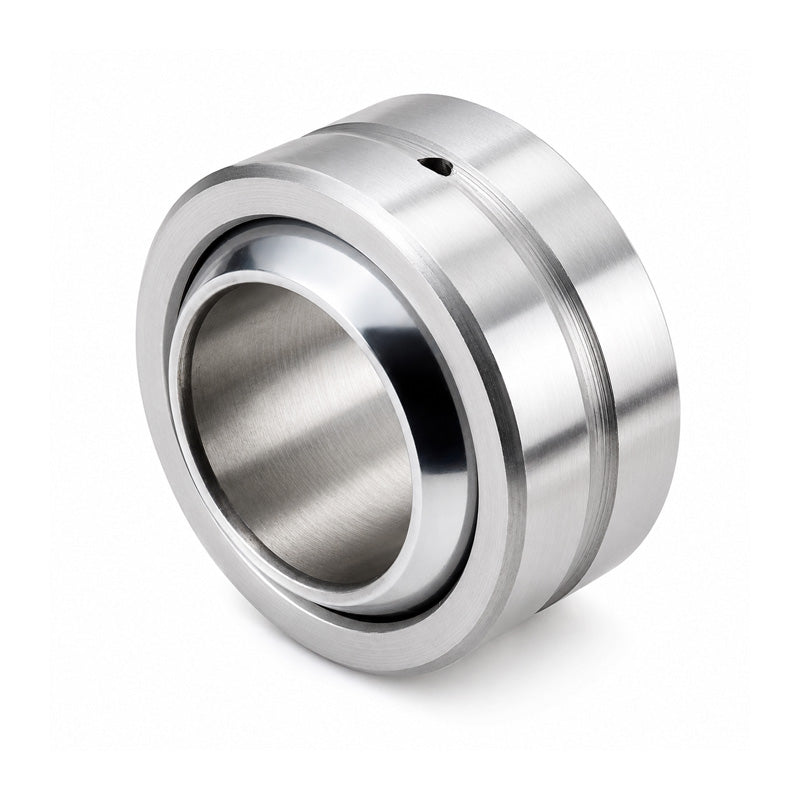

Durbal DG06PW Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 6x16x9mm
Durbal DG06PW Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 6x16x9mm
Equivalent to: GE6PW
Out of stock
Share this product
Description
Description
DURBAL Spherical-Plain Bearing - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened, polished steel joint ball with a bearing brass outer ring lined with bronze - PTFE-composite. For use under high pressure and dynamic loads. Sliding combination: bearing brass with inset sliding film of bronze–PTFE compound material. Temperature range: -40 deg C to +200 deg C.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 6mm
- Material:
- PTFE Lined
Technical
Technical
| d | 6mm |
|---|---|
| d1 | 8.9mm |
| D | 16mm |
| dk | 12.7mm |
| B | 9mm |
| C | 6.75mm |
| rs | 0.3mm |
| r1s | 1.2mm |
| tilt angle α | 13 deg |
| weight | 0.01kg |
| basic load rating dyn C | 7.5 kN |
| basic load rating stat Co | 22 kN |
| radial clearance CN | 4-28 µm |
