SKU: DCS13.M8x1.25-DURB

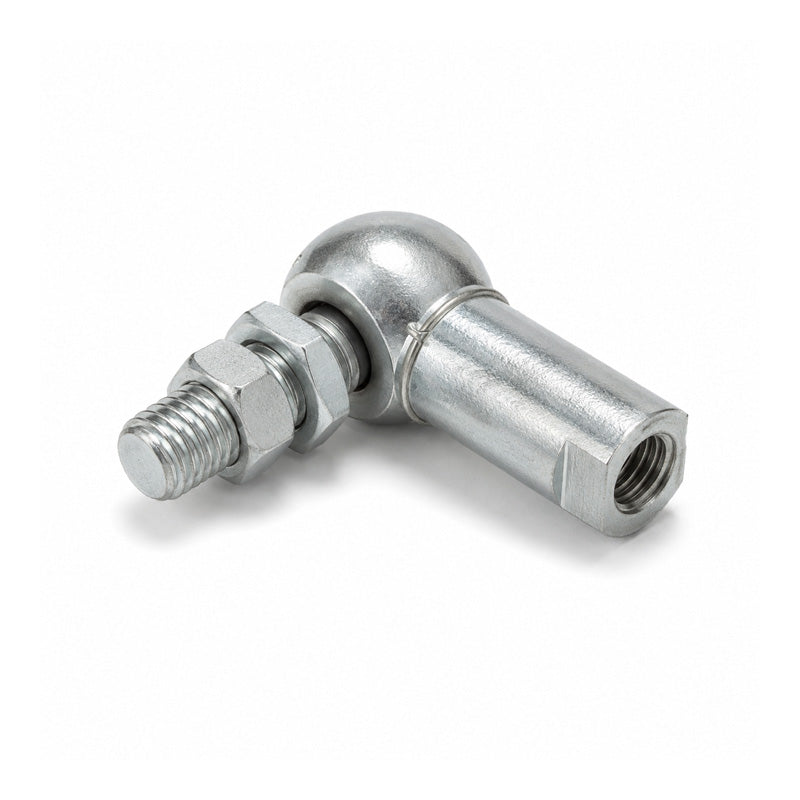

Durbal DCS13 Right Hand Galvanised Steel Ball Joint with Safety Clip 13mm Ball Diameter M8x1.25 Thread - Allow 7-10 Days
Durbal DCS13 Right Hand Galvanised Steel Ball Joint with Safety Clip 13mm Ball Diameter M8x1.25 Thread - Allow 7-10 Days
Out of stock
Share this product
Description
Description
Durbal Steel Ball Joints with Safety Clip: Ball joints are mechanical units for the connection of 2 parts which are perpendicular with respect to each other. They enable the transmission of alternating forces through angular and oscillating movements, at a moderate speed. Crafted with precision engineering and high-quality materials, these ball joint offers superior performance and reliability. These types of ball joints feature external slots for the integrated safety clip that ensures secure attachment, preventing accidental disengagement or detachment of the ball stud during operation.
- Brand / Quality:
- Durbal - High Quality
Technical
Technical
| Thread Direction | Right |
|---|---|
| d1 | 13mm |
| d2 | M8x1.25 |
| d3 | 13mm |
| d4 | 9.65mm |
| d6 | 13mm |
| a | 30mm |
| e | 14mm |
| l2 | 16.5mm |
| l3 | 13mm |
| h2 | 1.16mm |
| SW+ | 11 Nm |
| kg | 0.053 kg |
