SKU: CUC217

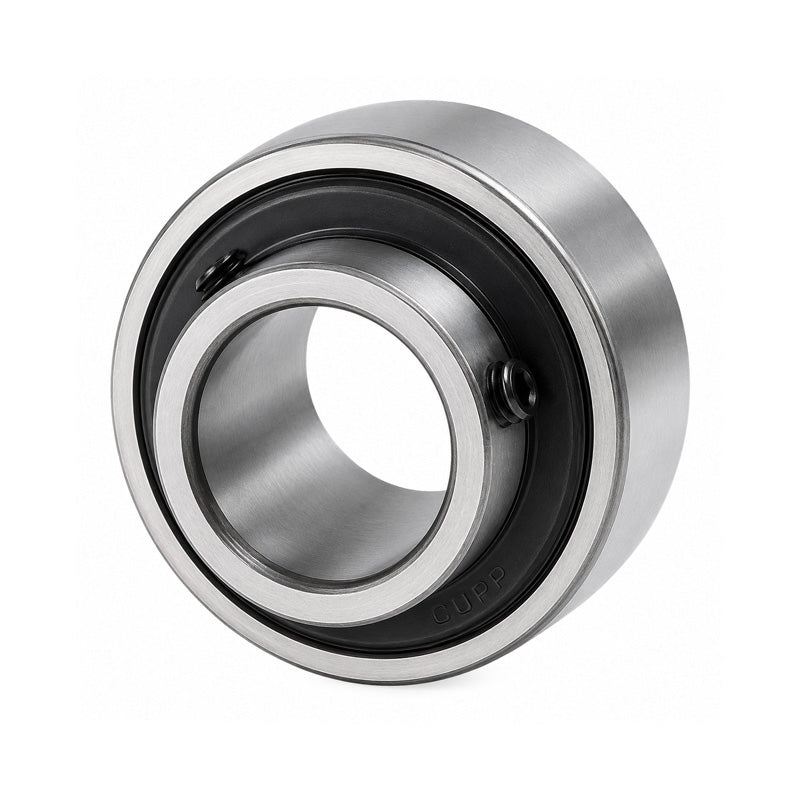

CUC217 Metric Cylindrical Bearing Insert with 85mm Bore 150mm Outside Dia
CUC217 Metric Cylindrical Bearing Insert with 85mm Bore 150mm Outside Dia
Equivalent to: UR217 RB217
Out of stock
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 150mm
Technical
Technical
| d | 85mm |
|---|---|
| D | 150mm |
| Bi | 85.7mm |
| Be | 34mm |
| N | 34.1mm |
| M | 51.6mm |
| G | 12mm |
| ds | M12x1.5, 7/16-20UNF |
| Dynamic Load | 83500 N |
| Static Load | 64000 N |
| Weight | 3.46 kg |
