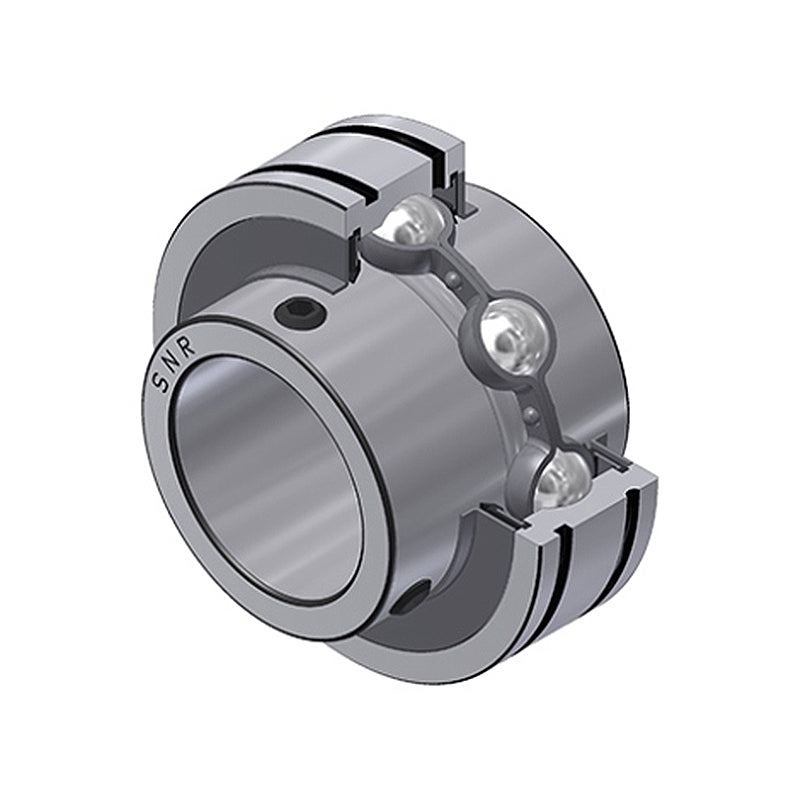

• SNR CUC208-24 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter with Grub Screws
1 1

SKU: CUC208-24-SNR

SNR CUC208-24 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter with Grub Screws

SNR CUC208-24 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter with Grub Screws
€28,95 ex VAT
€28,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €21,49
5+ €20,29
9+ €20,05
19+ €19,80
49+ €19,56
74+ €19,32
99+ €18,11
199+ €17,87
249+ €17,63
499+ €17,39
999+ €16,91

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
X62A3KZBXW
Brand / Quality:
SNR - High Quality
Thread Size:
5/16-24UNF
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Outside Diameter:
80mm
Width:
49.2mm
Style:
CUC
Technical
d 1-1/2 inch
d 38.1mm
D 80mm
C 21mm
B 49.2mm
S 19mm
a 3.4mm
b 1.9mm
N1 76.81mm
m 8mm
C1 5mm
r min 1.1mm
G 5/16-24UNF
Wrench Size 5/32 inch
Set screw torque 8 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 32.6kN
Static load rating C0 19.9kN
Weight 0.7kg
