SKU: CSC-80-SB-IKO
IKO CSC80SB Hex Head Stainless Steel Crowned Cam Follower 2-1/2 inch Outside Diameter Allow 7-10 Days
IKO CSC80SB Hex Head Stainless Steel Crowned Cam Follower 2-1/2 inch Outside Diameter Allow 7-10 Days
Out of stock
Description
Description
|

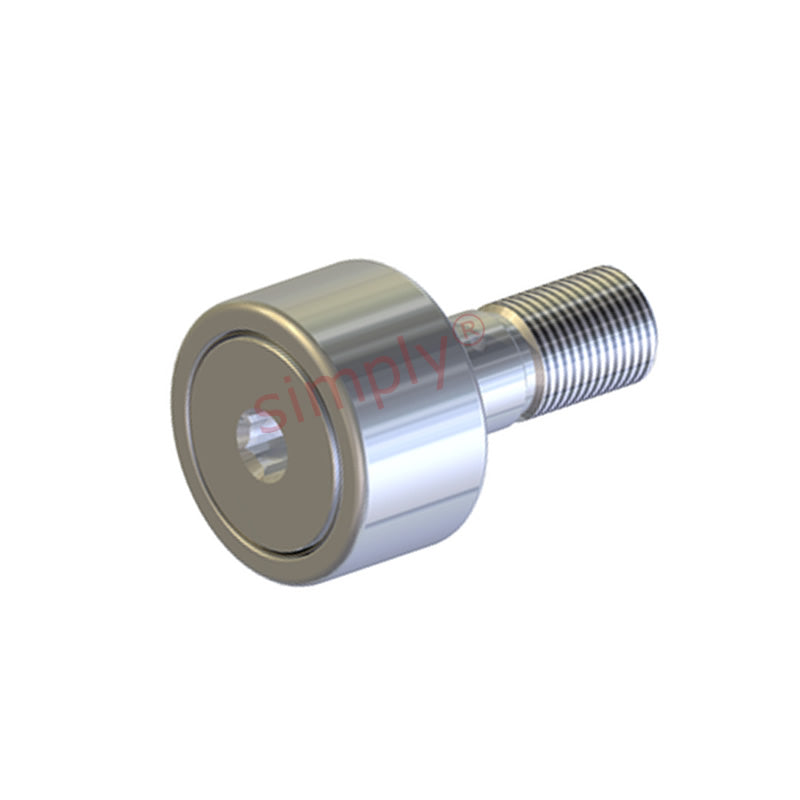

Stainless Steel Crowned Cam Follower with Hex Head: These bearings are dimensionally interchangeable with standard cam followers offered by other major manufacturers. The Seal Tight design minimises contamination to keep machinery running longer. These bearings contain a food-grade lubricant to ensure compatibility with any application. Benefits: Minimises contamination, re-lubricatable, high precision manufacturing. Note: Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Width:
- 38.1mm = 1.5 (1-1/2) inch
- Pitch:
- UNF 1-14
Technical
Technical
| A | 2.5 inch |
|---|---|
| B | 1.5 inch |
| C | 1 inch |
| D | 2.25 inch |
| E | 1-1/8 inch |
| Thread class 2A F | 1-14 UNS |
| G | 9/16 inch |
| H | 1/8 inch |
| J | 3/16 inch |
| Min boss diameter | 1-5/16 inch |
| Recommended bore | 1 inch |
| Recommended torque | 1125 lbf-in |
| Basic dynamic rating | 10430 lbs |
| Max static capacity | 12335 lbs |
