SKU: CSB.211-32

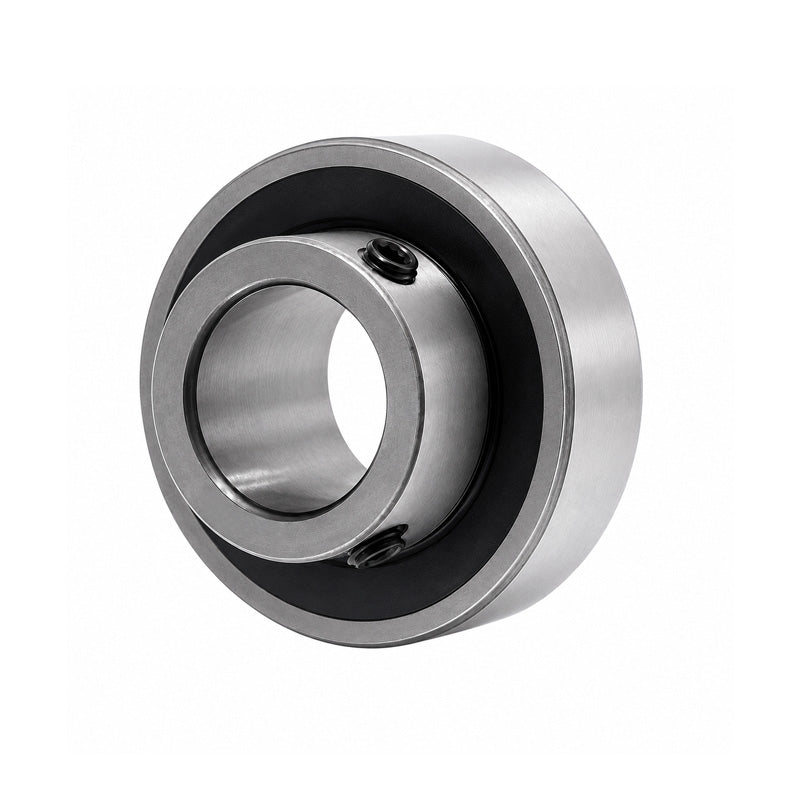

CSB211-32 Imperial Bearing Insert with 2 inch Bore 100mm Outside Dia
CSB211-32 Imperial Bearing Insert with 2 inch Bore 100mm Outside Dia
Out of stock
Share this product
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 100mm
- Style:
- CSB
Technical
Technical
| d | 2 inch |
|---|---|
| Be | 23mm |
| D | 100mm |
| Bi | 45.3mm |
| n | 11.8mm |
| m | 33.5mm |
| G | 9.8mm |
| h | 7.2mm |
| Grub screw | 5/16-24 UNF |
| Weight | 1.1 kg |
| Dynamic load | 4400 kgf |
| Static load | 2960 kgf |
