SKU: CNBH-40-IKO

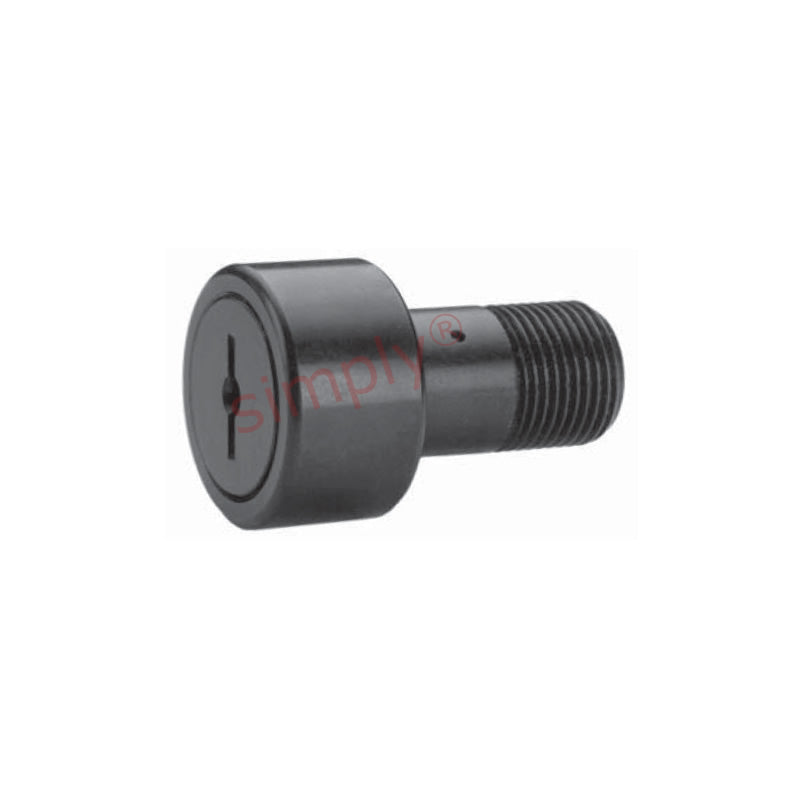

IKO CNBH40 Heavy Duty Slotted Cylindrical Cam Follower 1-1/4 inch Outside Diameter Allow 7-10 Days
IKO CNBH40 Heavy Duty Slotted Cylindrical Cam Follower 1-1/4 inch Outside Diameter Allow 7-10 Days
Out of stock
Description
Description
|
Heavy Duty Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
- Pitch:
- UNF 3/4-16
Technical
Technical
| A | 1.25 inch |
|---|---|
| B | 0.75 inch |
| C | 0.75 inch |
| D | 1.25 inch |
| E | 0.625 inch |
| Thread class 2A F | 3/4-16 UNF |
| G | 5/16 inch |
| H | 3/32 inch |
| J | 3/16 inch |
| Min boss diameter | 63/64 inch |
| Recommended bore | 0.75 inch |
| Recommended torque | 1250 lbf-in |
| Max static capacity | 8500 lbs |
| Basic dynamic rating | 3930 lbs |
