SKU: CM-UKT315ED1/HE2315X-NTN

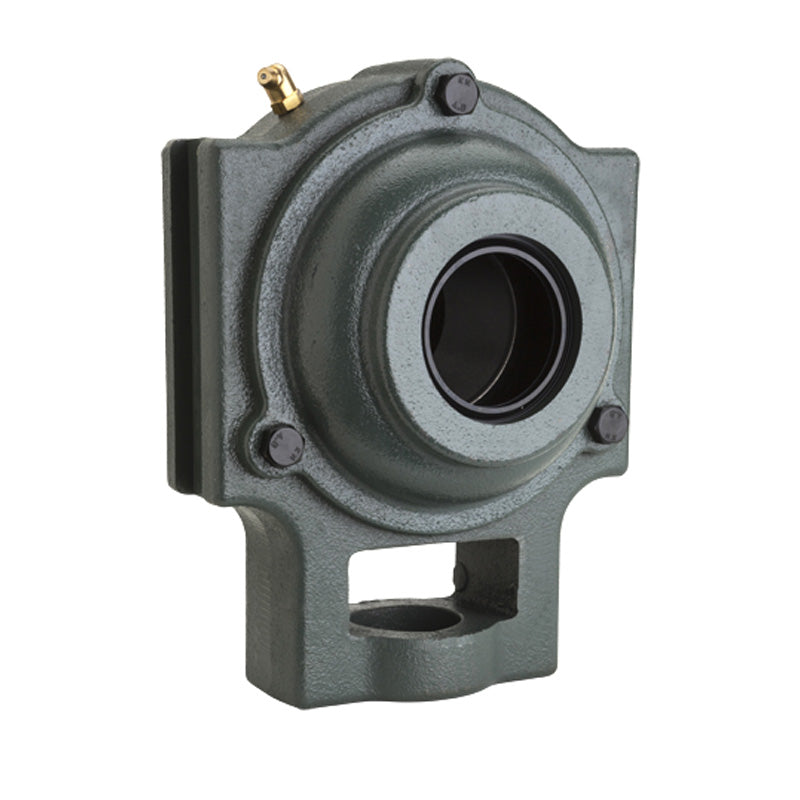

NTN CM-UKT315ED1/HE2315X Imperial Cast Iron Take Up Unit with Cast Iron Cover - Closed Version - Insert and Adaptor Sleeve Fits 2-1/2 inch Shaft - Allow 2-3 Days
NTN CM-UKT315ED1/HE2315X Imperial Cast Iron Take Up Unit with Cast Iron Cover - Closed Version - Insert and Adaptor Sleeve Fits 2-1/2 inch Shaft - Allow 2-3 Days
Out of stock
Description
Description
UKT300 Series Heavy Duty Take-Up Unit with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- UKT
Technical
Technical
| Shaft diameter | 2-1/2 inch |
|---|---|
| N<sub>1</sub> | 1-13/32 inch |
| L<sub>2</sub> | 1-1/16 inch |
| H<sub>2</sub> | 5-3/16 inch |
| N<sub>2</sub> | 3-11/32 inch |
| N | 1-13/16 inch |
| L<sub>3</sub> | 5-29/32 inch |
| A<sub>1</sub> | 1.024 inch |
| H<sub>1</sub> | 7-9/16 inch |
| H | 8-1/2 inch |
| A<sub>2</sub> | 2-5/32 inch |
| A | 3-17/32 inch |
| r | 4-1/32 inch |
| L<sub>1</sub> | 6-5/16 inch |
| B<sub>1</sub> | 2.874 inch |
| t | 1-1/32 inch |
| L<sub>4</sub> | 10-9/16 inch |
| A<sub>5</sub> | 5-29/32 inch |
| Mass | 37 lbs |
