SKU: CM-UCTX14D1-NTN

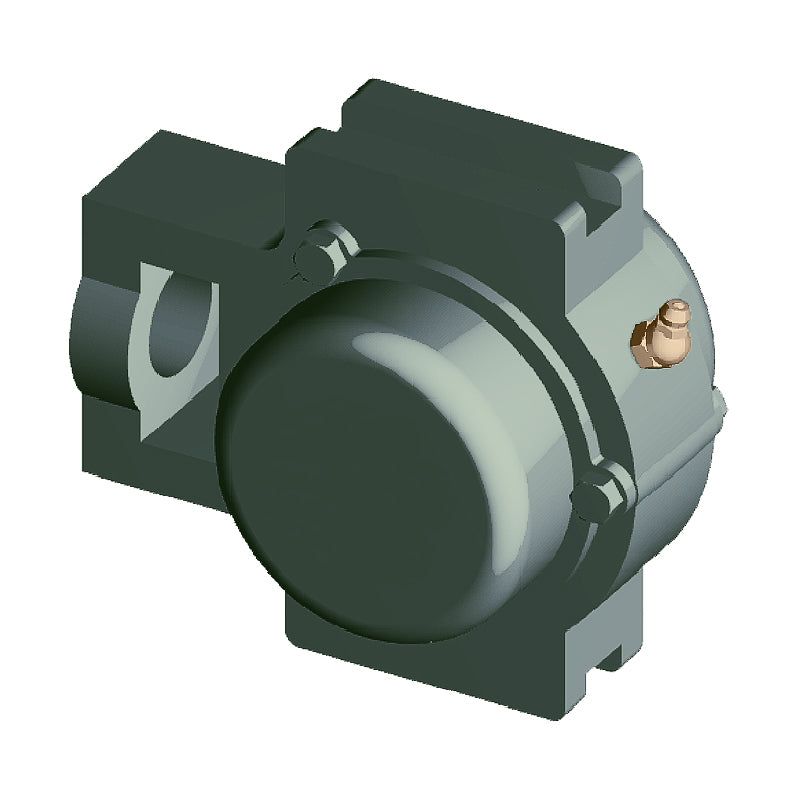

NTN CM-UCTX14D1 Metric Cast Iron Take Up Unit with 70mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCTX14D1 Metric Cast Iron Take Up Unit with 70mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCTX
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 70mm |
| N<sub>1</sub> | 32mm |
| L<sub>2</sub> | 23mm |
| H<sub>2</sub> | 111mm |
| N<sub>2</sub> | 70mm |
| N | 41mm |
| L<sub>3</sub> | 121mm |
| A<sub>1</sub> | 26mm |
| H<sub>1</sub> | 151mm |
| H | 167mm |
| L | 232mm |
| A<sub>2</sub> | 48mm |
| A | 70mm |
| r | 92mm |
| L<sub>1</sub> | 140mm |
| B | 77.8mm |
| S | 33.3mm |
| t<sub>2</sub> | 17mm |
| L<sub>4</sub> | 232mm |
| A<sub>5</sub> | 135mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 73.5 kN |
| Static load C<sub>0r</sub> | 49.5 kN |
| Fatigue load limit C<sub>u</sub> | 3.8 kN |
| --- | Unit information |
| Mass | 10 kg |
