SKU: CM-UCT324D1-NTN

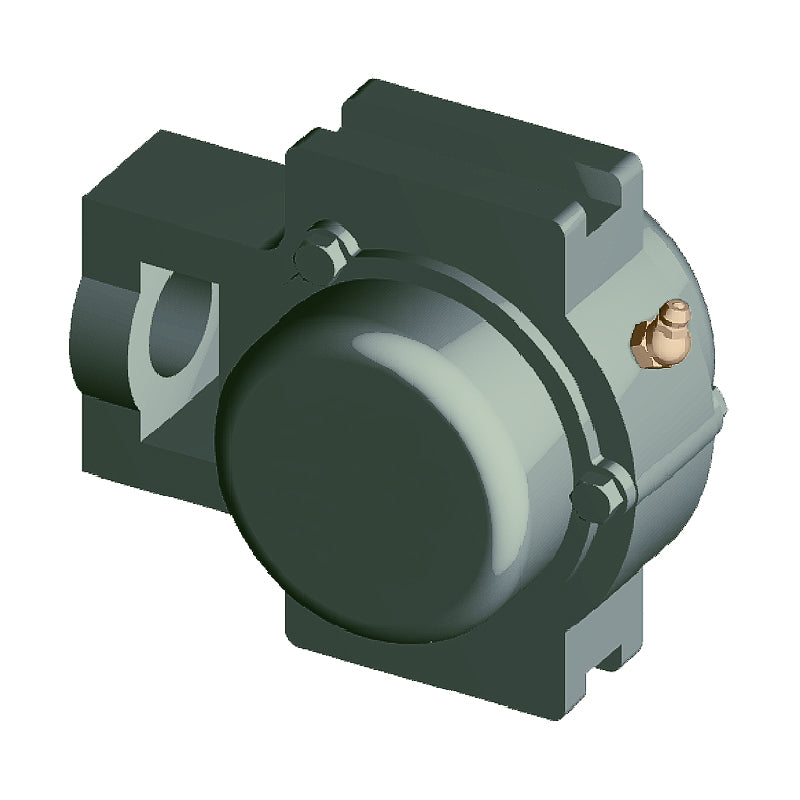

NTN CM-UCT324D1 Metric Cast Iron Take Up Unit with 120mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCT324D1 Metric Cast Iron Take Up Unit with 120mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 120mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 120mm |
| N<sub>1</sub> | 60mm |
| L<sub>2</sub> | 44mm |
| H<sub>2</sub> | 210mm |
| N<sub>2</sub> | 140mm |
| N | 70mm |
| L<sub>3</sub> | 230mm |
| A<sub>1</sub> | 45mm |
| H<sub>1</sub> | 320mm |
| H | 355mm |
| L | 432mm |
| A<sub>2</sub> | 90mm |
| A | 140mm |
| r | 165mm |
| L<sub>1</sub> | 267mm |
| B | 126mm |
| S | 51mm |
| t<sub>2</sub> | 22mm |
| L<sub>4</sub> | 439mm |
| A<sub>5</sub> | 215mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 229 kN |
| Static load C<sub>0r</sub> | 185 kN |
| Fatigue load limit C<sub>u</sub> | 10.5 kN |
| --- | Unit information |
| Mass | 69 kg |
