SKU: CM-UCT309-112D1-NTN

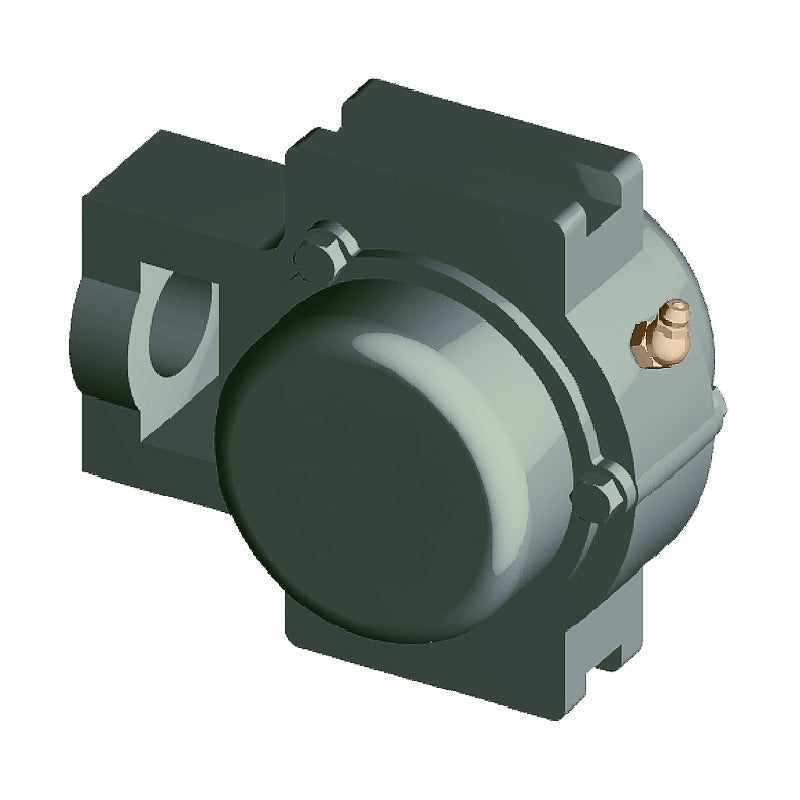

NTN CM-UCT309-112D1 Imperial Cast Iron Take Up Unit with 1-3/4 inch Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCT309-112D1 Imperial Cast Iron Take Up Unit with 1-3/4 inch Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-3/4 inch |
| N<sub>1</sub> | 15/16 inch |
| L<sub>2</sub> | 25/32 inch |
| H<sub>2</sub> | 3-17/32 inch |
| N<sub>2</sub> | 2-5/32 inch |
| N | 1-11/32 inch |
| L<sub>3</sub> | 3-13/16 inch |
| A<sub>1</sub> | 0.709 inch |
| H<sub>1</sub> | 4-59/64 inch |
| H | 5-7/16 inch |
| L | 7 inch |
| A<sub>2</sub> | 1-1/2 inch |
| A | 2-5/32 inch |
| r | 2-11/16 inch |
| L<sub>1</sub> | 4-11/32 inch |
| B | 2.2441 inch |
| S | 0.866 inch |
| t<sub>2</sub> | 35/64 inch |
| L<sub>4</sub> | 7-1/8 inch |
| A<sub>5</sub> | 4-11/32 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 58.5 kN |
| Static load C<sub>0r</sub> | 32 kN |
| Fatigue load limit C<sub>u</sub> | 2.5 kN |
| --- | Unit information |
| Mass | 12 lbs |
