SKU: CM-UCT212D1-NTN

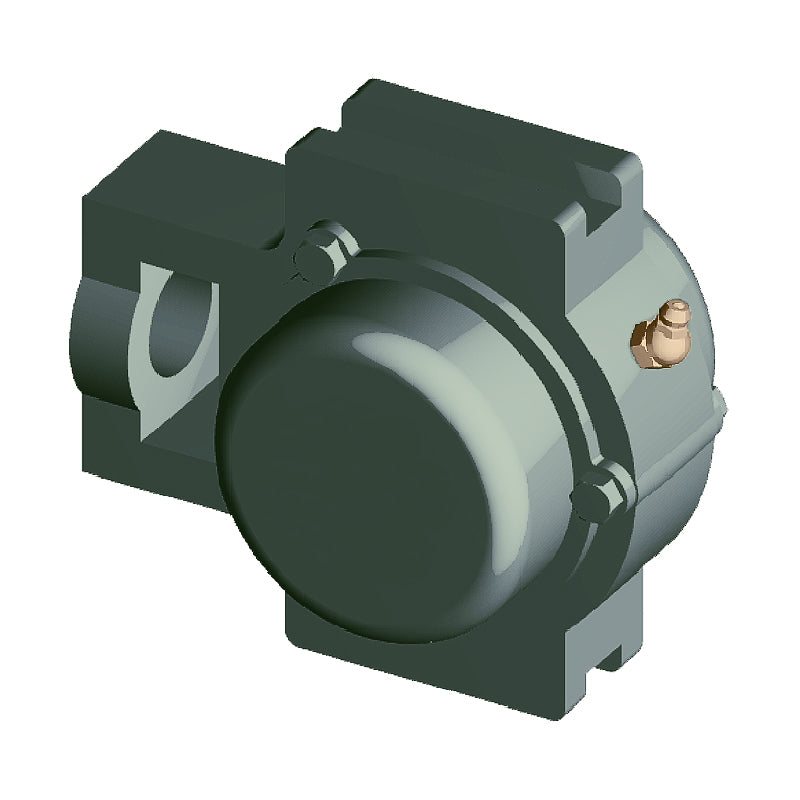

NTN CM-UCT212D1 Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCT212D1 Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
€116,95
ex VAT
Regular price
Sale price
€116,95
ex VAT
In stock
Price Break
3+
€88,36
4+
€83,40
9+
€82,40
19+
€81,41
49+
€80,42
99+
€79,42
499+
€74,46
999+
€73,47
1999+
€72,47
2999+
€71,48
4999+
€69,50
Quantity
Couldn't load pickup availability
Description
Description
UCT200_DESC
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCT
Technical
Technical

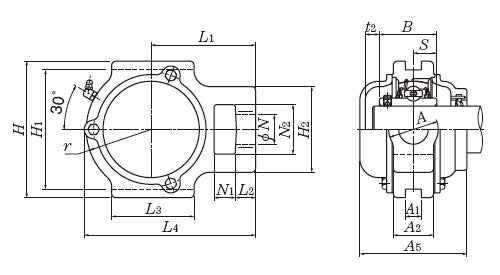

| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| N<sub>1</sub> | 32mm |
| L<sub>2</sub> | 21mm |
| H<sub>2</sub> | 102mm |
| N<sub>2</sub> | 64mm |
| N | 35mm |
| L<sub>3</sub> | 102mm |
| A<sub>1</sub> | 22mm |
| H<sub>1</sub> | 130mm |
| H | 146mm |
| L | 194mm |
| A<sub>2</sub> | 42mm |
| A | 64mm |
| r | 75mm |
| L<sub>1</sub> | 119mm |
| B | 65.1mm |
| S | 25.4mm |
| t<sub>2</sub> | 12mm |
| L<sub>4</sub> | 194mm |
| A<sub>5</sub> | 115mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 58 kN |
| Static load C<sub>0r</sub> | 36 kN |
| Fatigue load limit C<sub>u</sub> | 2.83 kN |
| --- | Unit information |
| Mass | 6.1 kg |
