SKU: CM-UCT207D1-NTN

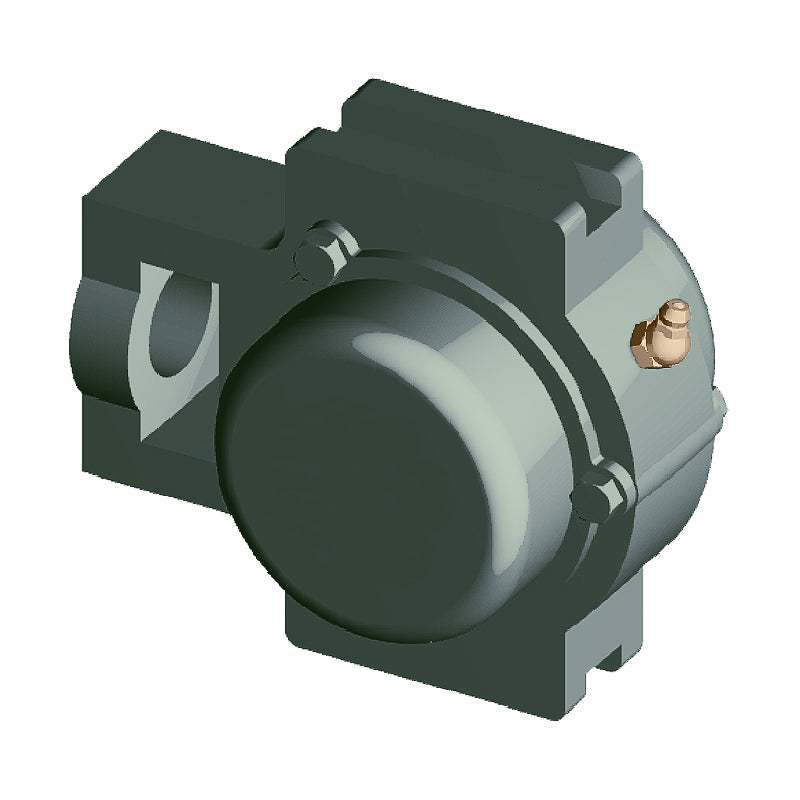

NTN CM-UCT207D1 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCT207D1 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
€58,95
ex VAT
Regular price
Sale price
€58,95
ex VAT
In stock
Price Break
3+
€44,18
4+
€41,70
9+
€41,20
19+
€40,70
49+
€40,21
99+
€39,71
499+
€37,23
999+
€36,73
1999+
€36,24
2999+
€35,74
4999+
€34,75
Quantity
Couldn't load pickup availability
Description
Description
UCT200_DESC
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCT
Technical
Technical

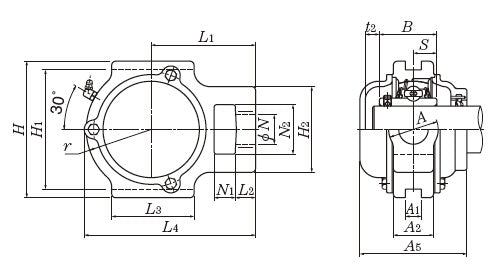

| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| N<sub>1</sub> | 16mm |
| L<sub>2</sub> | 15mm |
| H<sub>2</sub> | 64mm |
| N<sub>2</sub> | 37mm |
| N | 22mm |
| L<sub>3</sub> | 64mm |
| A<sub>1</sub> | 12mm |
| H<sub>1</sub> | 89mm |
| H | 102mm |
| L | 129mm |
| A<sub>2</sub> | 30mm |
| A | 37mm |
| r | 51mm |
| L<sub>1</sub> | 78mm |
| B | 42.9mm |
| S | 17.5mm |
| t<sub>2</sub> | 10mm |
| L<sub>4</sub> | 129mm |
| A<sub>5</sub> | 80mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 28.4 kN |
| Static load C<sub>0r</sub> | 15.3 kN |
| Fatigue load limit C<sub>u</sub> | 1.09 kN |
| --- | Unit information |
| Mass | 2.1 kg |
