SKU: CM-UCFL313D1-NTN

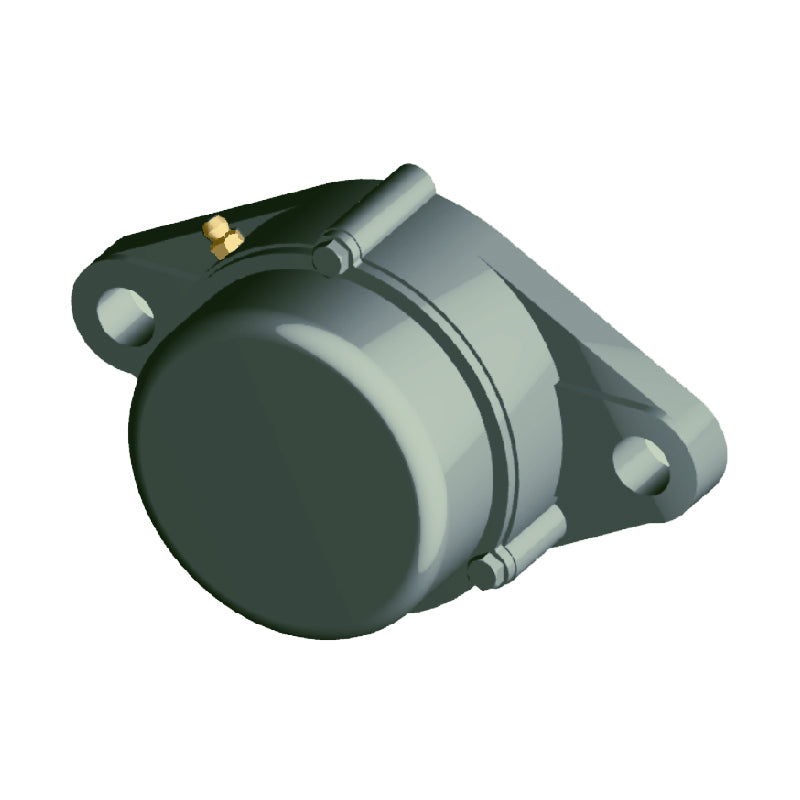

NTN CM-UCFL313D1 Metric Two Bolt Oval Cast Iron Flange Housing with 65mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCFL313D1 Metric Two Bolt Oval Cast Iron Flange Housing with 65mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCFL
- Bolt Hole Centres:
- 240mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 65mm |
| H | 295mm |
| J | 240mm |
| A<sub>2</sub> | 33mm |
| A<sub>1</sub> | 25mm |
| A | 58mm |
| N | 31mm |
| L | 175mm |
| B | 75mm |
| S | 30mm |
| t | 19mm |
| A<sub>5</sub> | 103mm |
| L<sub>1</sub> | 189mm |
| L<sub>2</sub> | 88mm |
| Fixing bolt | M27 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 103 kN |
| Static load C<sub>0r</sub> | 600 kN |
| Fatigue load limit C<sub>u</sub> | 4.6 kN |
| --- | Unit information |
| Mass | 9.9 kg |
