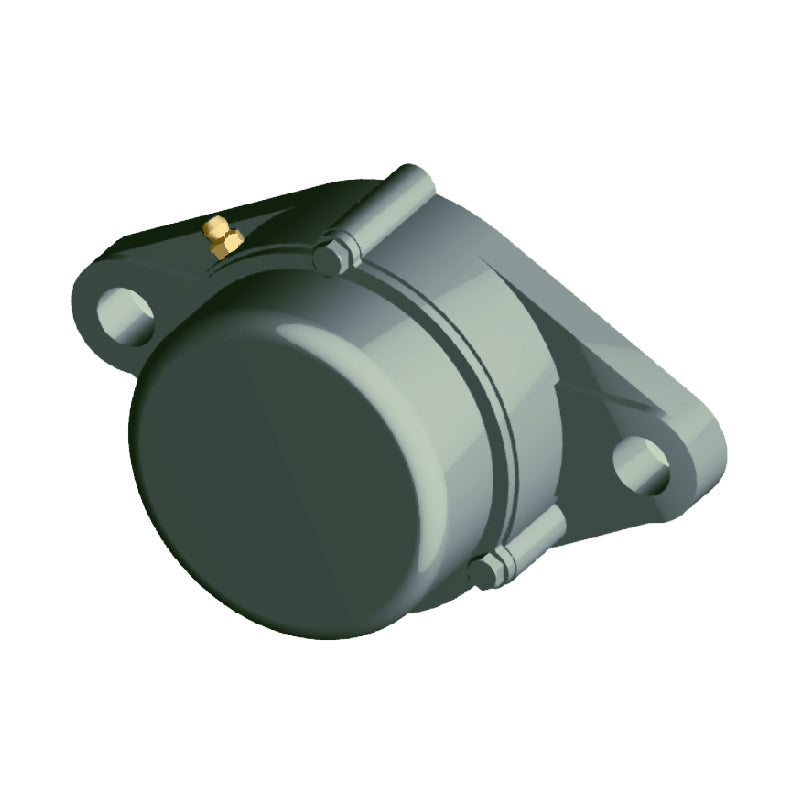

NTN CM-UCFL305D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCFL305D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCFL
- Bolt Hole Centres:
- 113mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| H | 150mm |
| J | 113mm |
| A<sub>2</sub> | 16mm |
| A<sub>1</sub> | 13mm |
| A | 29mm |
| N | 19mm |
| L | 80mm |
| B | 38mm |
| S | 15mm |
| t | 12mm |
| A<sub>5</sub> | 56mm |
| L<sub>1</sub> | 86mm |
| L<sub>2</sub> | 40mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 23.5 kN |
| Static load C<sub>0r</sub> | 10.9 kN |
| Fatigue load limit C<sub>u</sub> | 0.855 kN |
| --- | Unit information |
| Mass | 1.2 kg |
