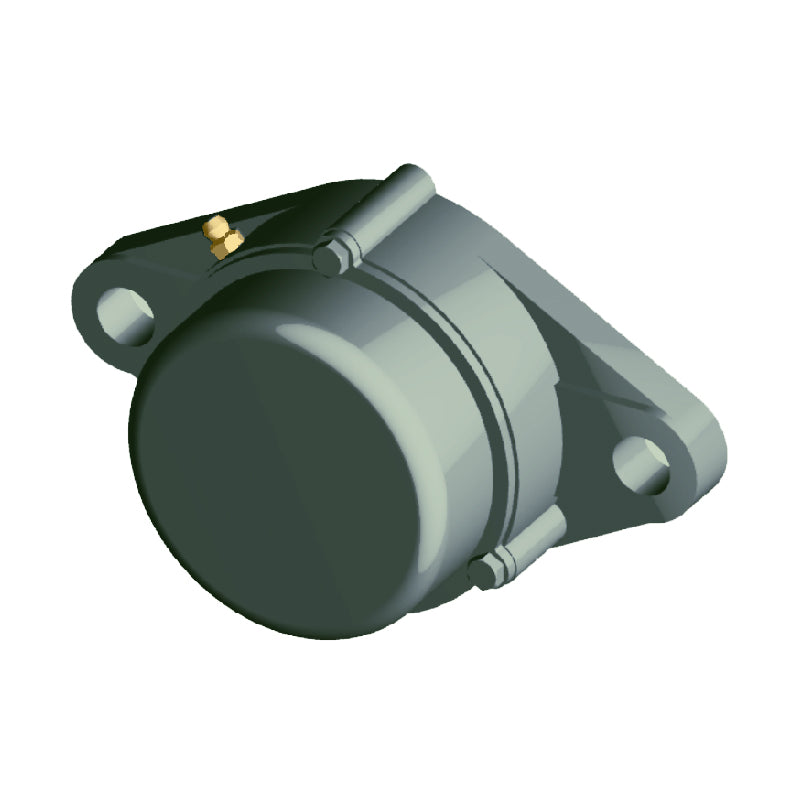

• NTN CM-UCFL205D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
1 1

SKU: CM-UCFL205D1-NTN

NTN CM-UCFL205D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days

NTN CM-UCFL205D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
€36,95 ex VAT
€36,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €27,98
4+ €26,41
9+ €26,10
19+ €25,78
49+ €25,47
99+ €25,15
499+ €23,58
999+ €23,27
1999+ €22,95
2999+ €22,64
4999+ €22,01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL200_DESC
Brand / Quality:
NTN - High Quality
Inside Diameter:
25mm
Style:
UCFL
Bolt Hole Centres:
99mm
Technical

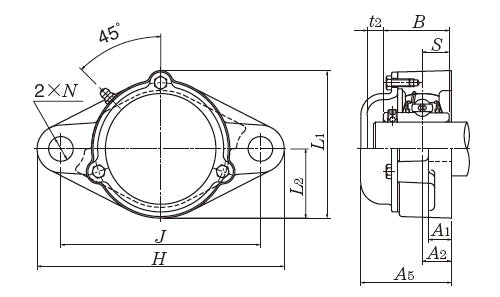

--- Dimensions
Shaft diameter 25mm
H 130mm
J 99mm
A<sub>2</sub> 16mm
A<sub>1</sub> 13mm
A 27mm
N 16mm
L 68mm
B 34.1mm
S 14.3mm
t<sub>2</sub> 11mm
A<sub>5</sub> 51mm
L<sub>1</sub> 74mm
L<sub>2</sub> 34mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 15.5 kN
Static load C<sub>0r</sub> 7.85 kN
Fatigue load limit C<sub>u</sub> 0.55 kN
--- Unit information
Mass 0.8 kg
