SKU: CM-UCFC208D1-NTN

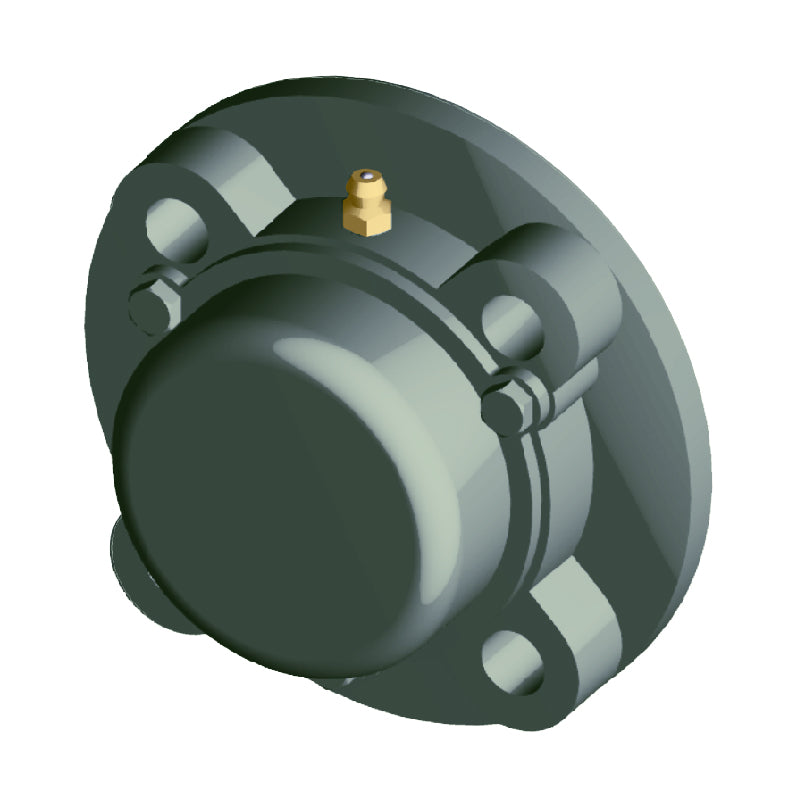

NTN CM-UCFC208D1 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCFC208D1 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
€62,95
ex VAT
Regular price
Sale price
€62,95
ex VAT
In stock
Price Break
3+
€47,71
4+
€45,03
9+
€44,50
19+
€43,96
49+
€43,42
99+
€42,89
499+
€40,21
999+
€39,67
1999+
€39,14
2999+
€38,60
4999+
€37,53
Quantity
Couldn't load pickup availability
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 84.9mm
Technical
Technical

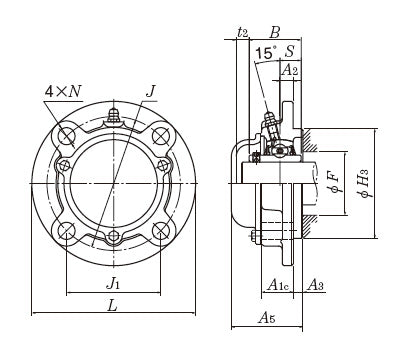

| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| L | 145mm |
| J | 120mm |
| (J<sub>1</sub>) | 84.9mm |
| A<sub>2</sub> | 11mm |
| N | 14mm |
| A<sub>3</sub> | 10mm |
| A<sub>1C</sub> | 27.5mm |
| A | 36mm |
| H<sub>3</sub> | 100mm |
| B | 49.2mm |
| S | 19mm |
| t<sub>2</sub> | 9mm |
| A<sub>5</sub> | 66mm |
| Fixing bolt | M12 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 32.5 kN |
| Static load C<sub>0r</sub> | 17.8 kN |
| Fatigue load limit C<sub>u</sub> | 1.24 kN |
| --- | Unit information |
| Mass | 2.4 kg |
