SKU: CM-UCF215D1-NTN

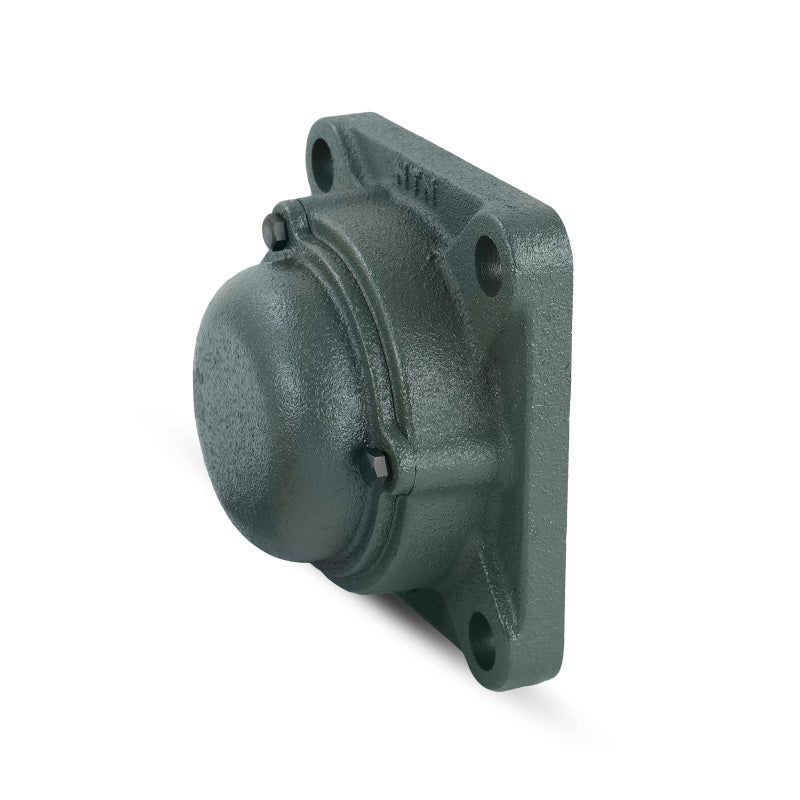

NTN CM-UCF215D1 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCF215D1 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
€189,95
ex VAT
Regular price
Sale price
€189,95
ex VAT
In stock
Price Break
3+
€144,32
4+
€136,21
9+
€134,59
19+
€132,97
49+
€131,35
99+
€129,73
499+
€121,62
999+
€120,00
1999+
€118,38
2999+
€116,76
4999+
€113,51
Quantity
Couldn't load pickup availability
Description
Description
UCF200_DESC
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Style:
- UCF
- Bolt Hole Centres:
- 159mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 75mm |
| L | 200mm |
| J | 159mm |
| A<sub>2</sub> | 34mm |
| A<sub>1</sub> | 22mm |
| A | 56mm |
| N | 19mm |
| B | 77.8mm |
| S | 33.3mm |
| t<sub>2</sub> | 17mm |
| A<sub>5</sub> | 102mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 73.5 kN |
| Static load C<sub>0r</sub> | 49.5 kN |
| Fatigue load limit C<sub>u</sub> | 3.8 kN |
| --- | Unit information |
| Mass | 7.8 kg |
