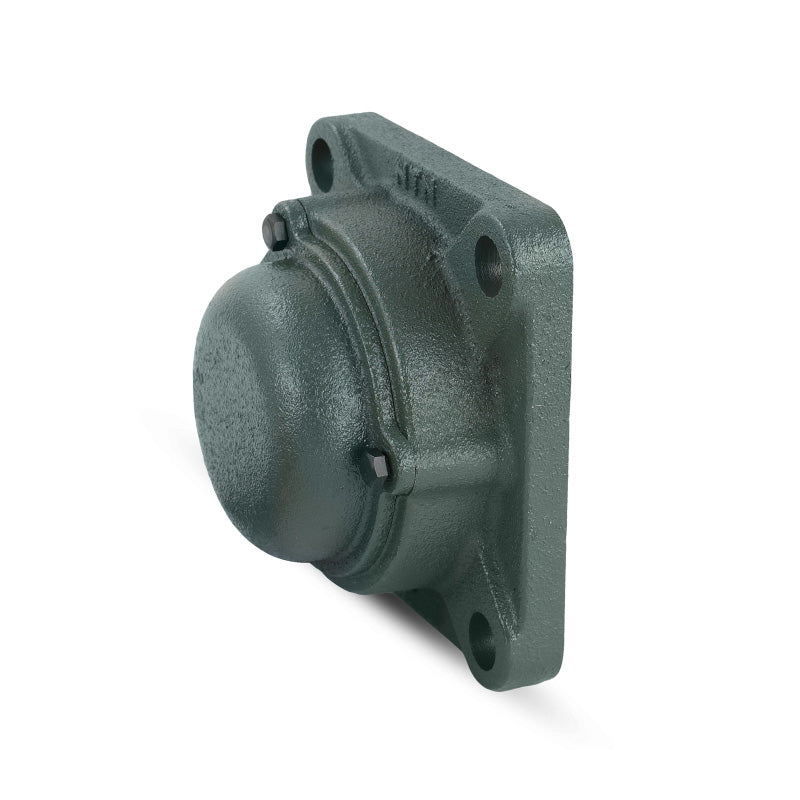

NTN CM-UCF208D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCF208D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
€60,95
ex VAT
Regular price
Sale price
€60,95
ex VAT
In stock
Price Break
3+
€45,95
4+
€43,37
9+
€42,85
19+
€42,34
49+
€41,82
99+
€41,30
499+
€38,72
999+
€38,21
1999+
€37,69
2999+
€37,17
4999+
€36,14
Quantity
Couldn't load pickup availability
Description
Description
UCF200_DESC
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCF
- Bolt Hole Centres:
- 102mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| L | 130mm |
| J | 102mm |
| A<sub>2</sub> | 21mm |
| A<sub>1</sub> | 15mm |
| A | 36mm |
| N | 16mm |
| B | 49.2mm |
| S | 19mm |
| t<sub>2</sub> | 9mm |
| A<sub>5</sub> | 66mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 32.5 kN |
| Static load C<sub>0r</sub> | 17.8 kN |
| Fatigue load limit C<sub>u</sub> | 1.24 kN |
| --- | Unit information |
| Mass | 2.2 kg |
