SKU: CM-UCF207D1-NTN

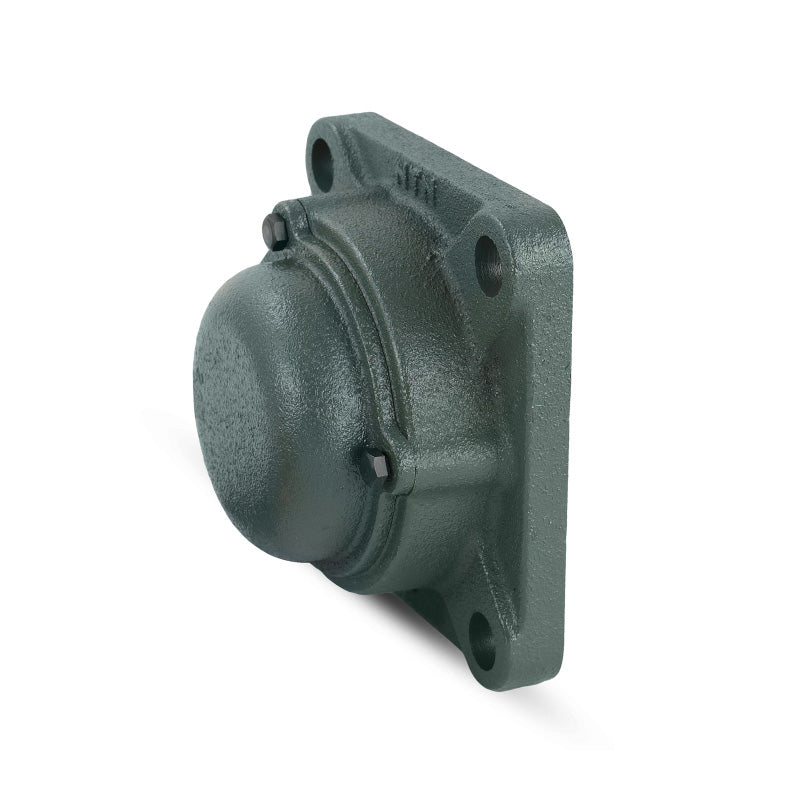

NTN CM-UCF207D1 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCF207D1 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
€51,95
ex VAT
Regular price
Sale price
€51,95
ex VAT
In stock
Price Break
3+
€38,88
4+
€36,69
9+
€36,25
19+
€35,82
49+
€35,38
99+
€34,94
499+
€32,76
999+
€32,32
1999+
€31,89
2999+
€31,45
4999+
€30,58
Quantity
Couldn't load pickup availability
Description
Description
UCF200_DESC
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCF
- Bolt Hole Centres:
- 92mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| L | 117mm |
| J | 92mm |
| A<sub>2</sub> | 19mm |
| A<sub>1</sub> | 15mm |
| A | 34mm |
| N | 14mm |
| B | 42.9mm |
| S | 17.5mm |
| t<sub>2</sub> | 10mm |
| A<sub>5</sub> | 59mm |
| Fixing bolt | M12 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 28.4 kN |
| Static load C<sub>0r</sub> | 15.3 kN |
| Fatigue load limit C<sub>u</sub> | 1.09 kN |
| --- | Unit information |
| Mass | 1.8 kg |
