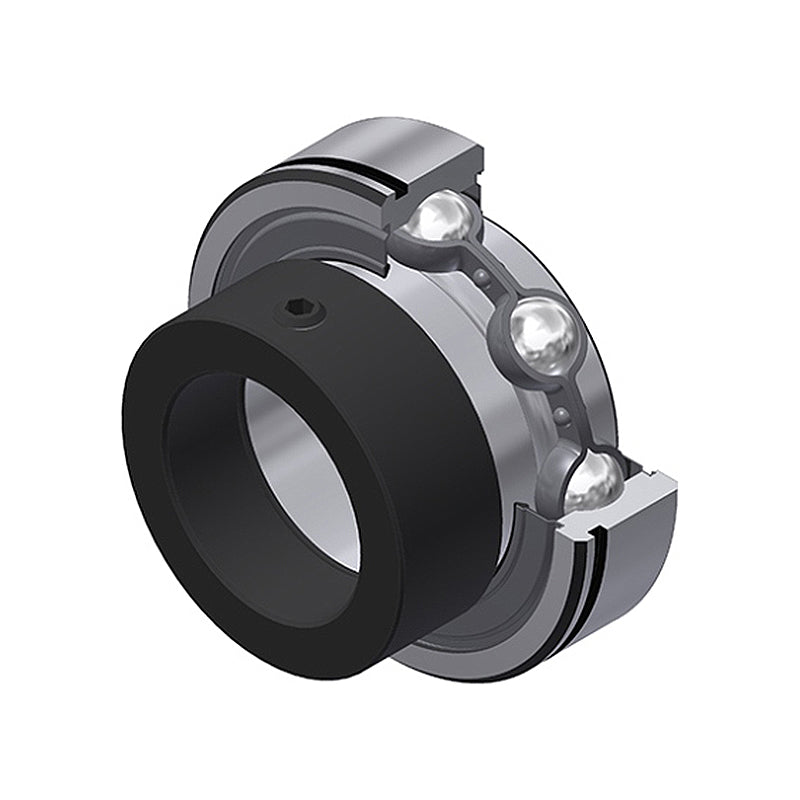

• SNR CES204 Metric Flatback Grooved Parallel Outer Bearing Insert 20mm Bore 47mm Outside Diameter with Eccentric Collar
1 1

SKU: CES204-SNR

SNR CES204 Metric Flatback Grooved Parallel Outer Bearing Insert 20mm Bore 47mm Outside Diameter with Eccentric Collar

SNR CES204 Metric Flatback Grooved Parallel Outer Bearing Insert 20mm Bore 47mm Outside Diameter with Eccentric Collar
€17,95 ex VAT
€17,95 ex VAT
Sale Sold out

Equivalent to: CSA204

In stock

Price Break
3+ €13,48
5+ €12,73
9+ €12,57
19+ €12,42
49+ €12,27
74+ €12,12
99+ €11,36
199+ €11,21
249+ €11,06
499+ €10,91
999+ €10,60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
IG953VLNXP
Brand / Quality:
SNR - High Quality
Thread Size:
M6x1
Inside Diameter:
20mm
Outside Diameter:
47mm
Width:
31mm
Style:
CES
Technical
d 20mm
D 47mm
C 14mm
B 21.5mm
B1 31mm
B2 13.5mm
d1 33.3mm
S 7mm
a 4mm
b 1.35mm
N1 44.6mm
m 5mm
r min 1mm
G M6x1
Wrench Size 3mm
Set screw torque 5.5 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 12.8kN
Static load rating C0 6.7kN
Weight 0.2kg
