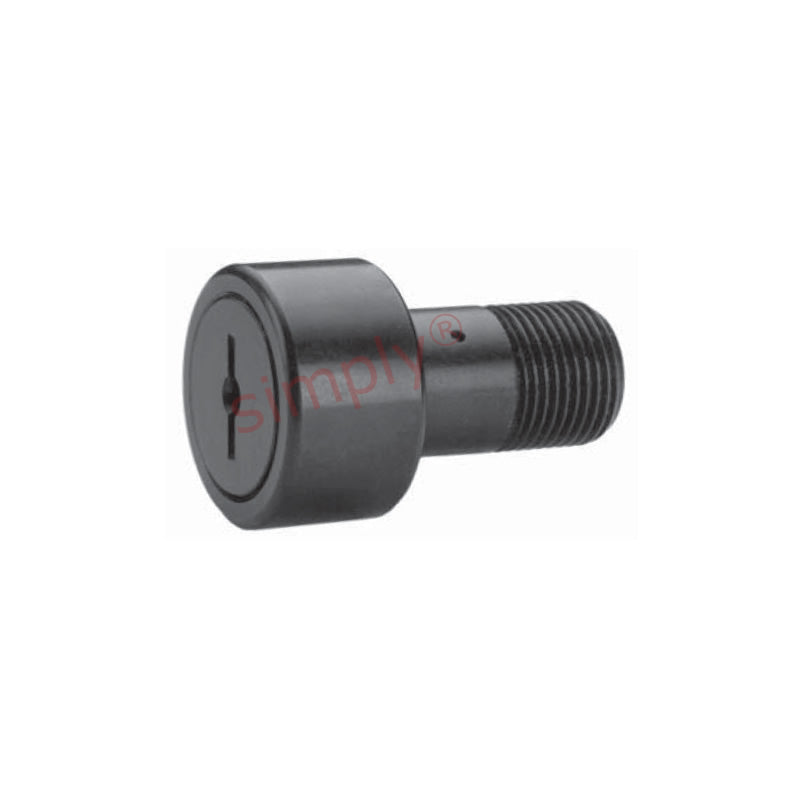

IKO CCNBH56S Heavy Duty Slotted Crowned Cam Follower 1-3/4 inch Outside Diameter Allow 7-10 Days
IKO CCNBH56S Heavy Duty Slotted Crowned Cam Follower 1-3/4 inch Outside Diameter Allow 7-10 Days
Out of stock
Description
Description
|
Heavy Duty Cam Follower with Slotted Head and Crowned O.D: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. This type of bearing is recommended wherever variations in dimensions of alignment of the tracks or cam might cause excessive angular loading. It reduces thrust on the rollers and wear, and aids reliability. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Width:
- 25.4mm = 1 inch
- Pitch:
- UNF 1-14
Technical
Technical
| A | 1.75 inch |
|---|---|
| B | 1 inch |
| C | 1 inch |
| D | 1.75 inch |
| E | 0.875 inch |
| Thread class 2A F | 1-14 UNS |
| G | 7/16 inch |
| H | 3/32 inch |
| J | 3/16 inch |
| Min boss diameter | 1-1/4 inch |
| Recommended bore | 1 inch |
| Recommended torque | 2250 lbf-in |
| Max static capacity | 15840 lbs |
| Basic dynamic rating | 6385 lbs |
