SKU: CCNBH-112-SB-IKO

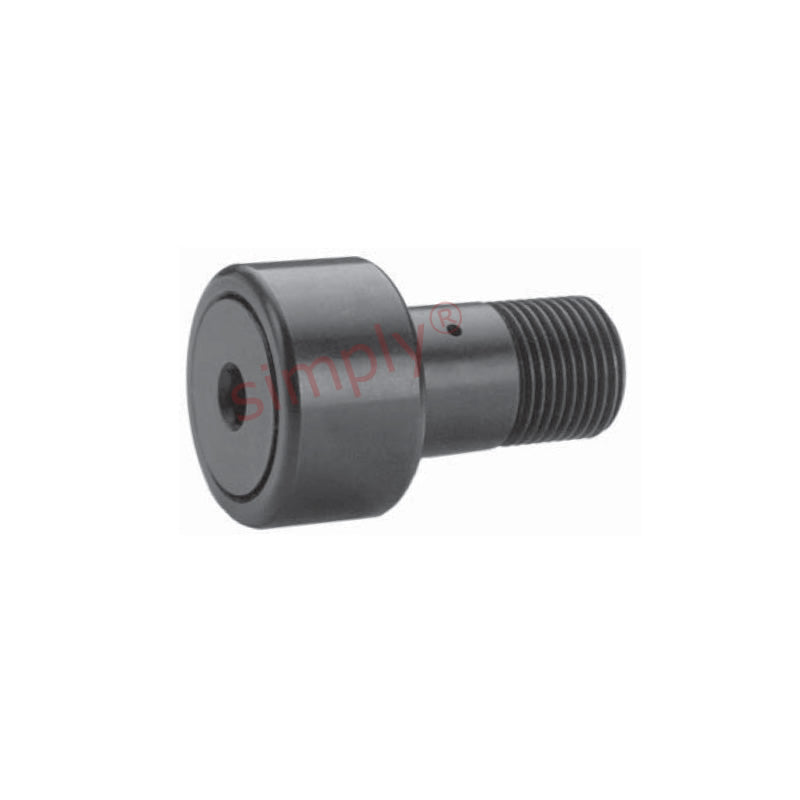

IKO CCNBH112SB Heavy Duty Hex Head Crowned Cam Follower 3-1/2 inch Outside Diameter Allow 7-10 Days
IKO CCNBH112SB Heavy Duty Hex Head Crowned Cam Follower 3-1/2 inch Outside Diameter Allow 7-10 Days
Out of stock
Description
Description
|
Heavy Duty Cam Follower with Hex Head and Crowned O.D: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. This type of bearing is recommended wherever variations in dimensions of alignment of the tracks or cam might cause excessive angular loading. It reduces thrust on the rollers and wear, and aids reliability. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, ease of installing with a hex wrench. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Width:
- 50.8mm = 2 inch
- Pitch:
- UNF 1-3/4-12
Technical
Technical
| A | 3.5 inch |
|---|---|
| B | 2 inch |
| C | 1.75 inch |
| D | 2.75 inch |
| E | 1.375 inch |
| Thread class 2A F | 1-3/4-12 UN |
| G | 11/16 inch |
| H | 1/8 inch |
| J | 1/4 inch |
| Min boss diameter | 2-7/16 inch |
| Recommended bore | 1.75 inch |
| Recommended torque | 5000 lbf-in |
| Max static capacity | 63250 lbs |
| Basic dynamic rating | 22800 lbs |
