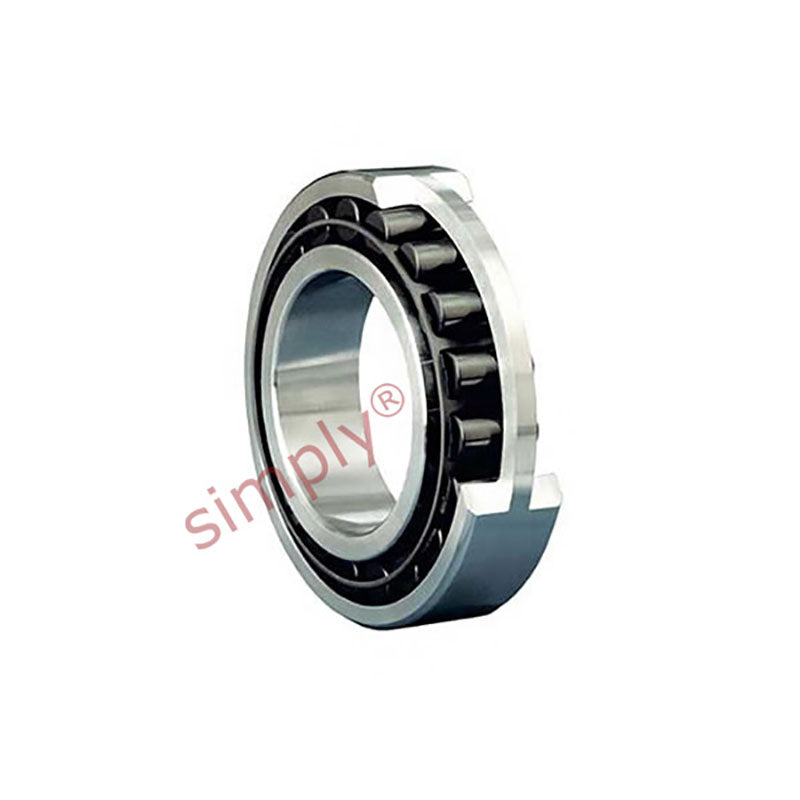

• SKF C4032K30V Carb Toroidal Roller Bearing with Taper Bore 160x240x80mm Allow 7-10 Days
1 1

SKU: C4032K30V-SKF

SKF C4032K30V Carb Toroidal Roller Bearing with Taper Bore 160x240x80mm Allow 7-10 Days

SKF C4032K30V Carb Toroidal Roller Bearing with Taper Bore 160x240x80mm Allow 7-10 Days
€2.044,95 ex VAT
€2.044,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €1.553,53
19+ €1.466,25
29+ €1.448,80
39+ €1.431,34
49+ €1.413,89
74+ €1.396,43
99+ €1.309,15
199+ €1.291,70
249+ €1.274,24
499+ €1.256,79
999+ €1.221,88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Carb Toroidal Roller Bearings: These compact design bearings have a single row of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants and the ability to deliberately displace the position of the rings to each other permits accurate setting of the radial internal clearance.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options
Brand / Quality:
SKF - High Quality
Inside Diameter:
160mm
Outside Diameter:
240mm
Width:
80mm
Seals / Shields:
None
Technical
--- Dimensions
d 160mm
D 240mm
B 80mm
d2 181mm
D1 217mm
r1r2 min 2.1mm
s1 18.1mm
s2 8.2mm
da min 171mm
da max 195mm
Da max 229mm
ra max 2mm
--- Speeds and Loads
Dynamic load C 915 kN
Static load Co 1460 kN
Fatigue load limit Pu 140 kN
Limiting speed 600 rpm
--- Factors
Misalignment factor k1 0.109
Operating clearance factor k2 0.103
--- Weights
Weight 12.6 kg
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AH24032+sleeve>AH24032</a>
