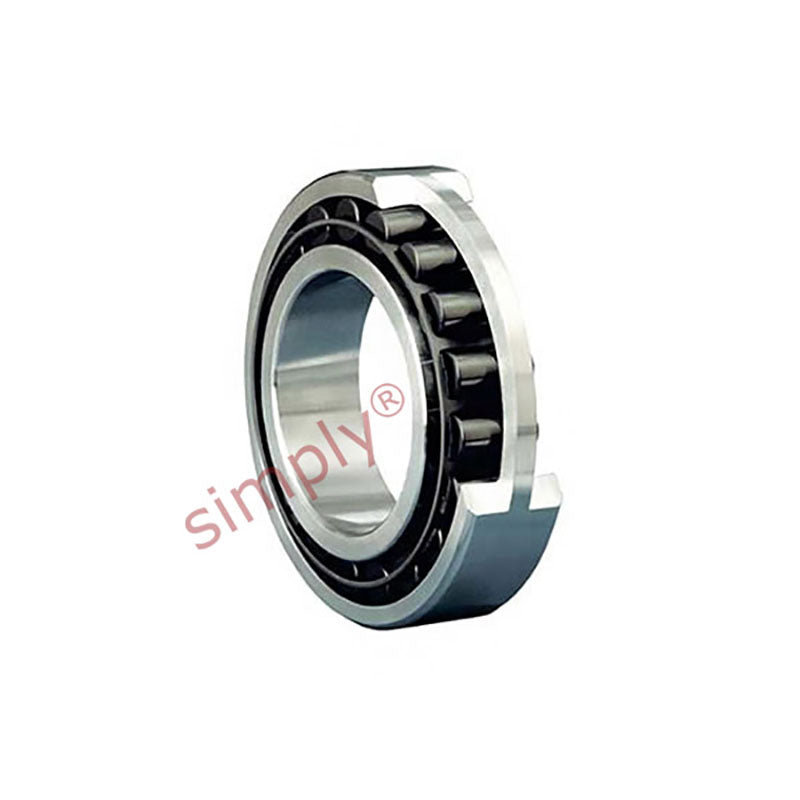

• SKF C2207KTN9 Carb Toroidal Roller Bearing with Taper Bore 35x72x23mm Allow 7-10 Days
1 1

SKU: C2207KTN9-SKF

SKF C2207KTN9 Carb Toroidal Roller Bearing with Taper Bore 35x72x23mm Allow 7-10 Days

SKF C2207KTN9 Carb Toroidal Roller Bearing with Taper Bore 35x72x23mm Allow 7-10 Days
€138,95 ex VAT
€138,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €105,45
19+ €99,53
29+ €98,35
39+ €97,16
49+ €95,98
74+ €94,79
99+ €88,87
199+ €87,68
249+ €86,50
499+ €85,31
999+ €82,94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Carb Toroidal Roller Bearings: These compact design bearings have a single row of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants and the ability to deliberately displace the position of the rings to each other permits accurate setting of the radial internal clearance.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options
Brand / Quality:
SKF - High Quality
Inside Diameter:
35mm
Outside Diameter:
72mm
Width:
23mm
Seals / Shields:
None
Technical
--- Dimensions
d 35mm
D 72mm
B 23mm
d2 44.8mm
D1 60.7mm
r1r2 min 1.1mm
s1 5.7mm
da min 42mm
da max 44mm
Da min 59mm
Da max 65mm
Ca 0.1mm
ra max 1mm
--- Speeds and Loads
Dynamic load C 83 kN
Static load Co 80 kN
Fatigue load limit Pu 9.3 kN
Reference speed 9500 rpm
Limiting speed 13000 rpm
--- Factors
Misalignment factor k1 0.094
Operating clearance factor k2 0.121
--- Weights
Weight 0.43 kg
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H307E+sleeve>H307E</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA307E+sleeve>HA307E</a>
