SKU: C-UCT311-201D1-NTN

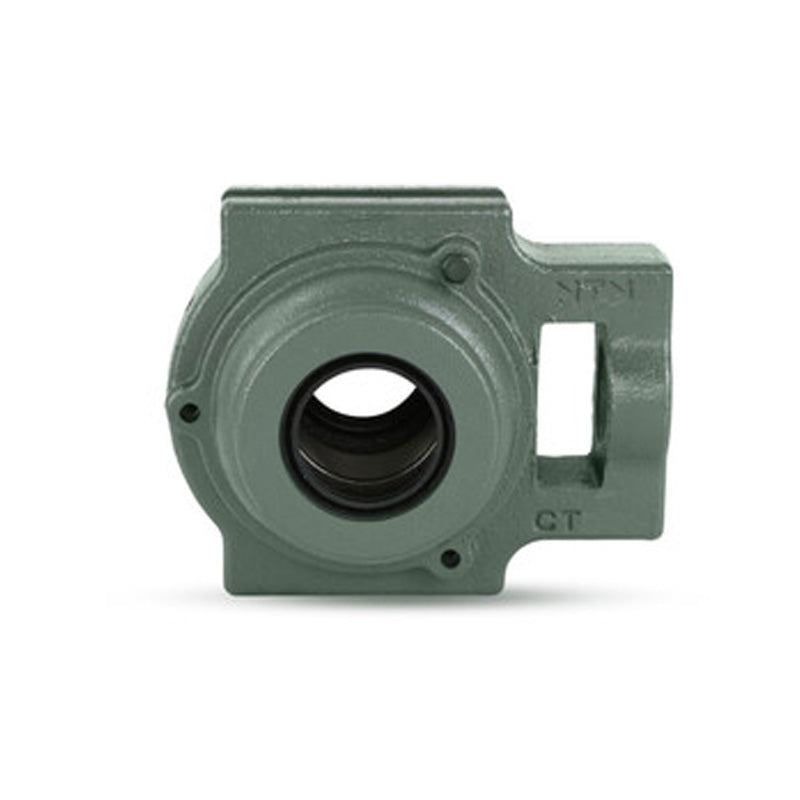

NTN C-UCT311-201D1 Imperial Cast Iron Take Up Unit with 2-1/16 inch Bore Bearing Unit with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCT311-201D1 Imperial Cast Iron Take Up Unit with 2-1/16 inch Bore Bearing Unit with Cast Iron Cover - Open Version - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 52.39mm = 2.063 (2-1/16) inch
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2-1/16 inch |
| N<sub>1</sub> | 1-5/32 inch |
| L<sub>2</sub> | 29/32 inch |
| H<sub>2</sub> | 4-1/8 inch |
| N<sub>2</sub> | 2-19/32 inch |
| N | 1-17/32 inch |
| L<sub>3</sub> | 4-17/32 inch |
| A<sub>1</sub> | 0.866 inch |
| H<sub>1</sub> | 5-29/32 inch |
| H | 6-13/32 inch |
| L | 8-5/32 inch |
| A<sub>2</sub> | 1-23/32 inch |
| A | 2-19/32 inch |
| r | 3-5/32 inch |
| L<sub>1</sub> | 5 inch |
| B | 2.5984 inch |
| S | 0.984 inch |
| L<sub>4</sub> | 8-5/16 inch |
| A<sub>5</sub> | 4-29/32 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 79.5 kN |
| Static load C<sub>0r</sub> | 45 kN |
| Fatigue load limit C<sub>u</sub> | 3.5 kN |
| --- | Unit information |
| Mass | 19 lbs |
