SKU: C-UCP306-103D1-NTN

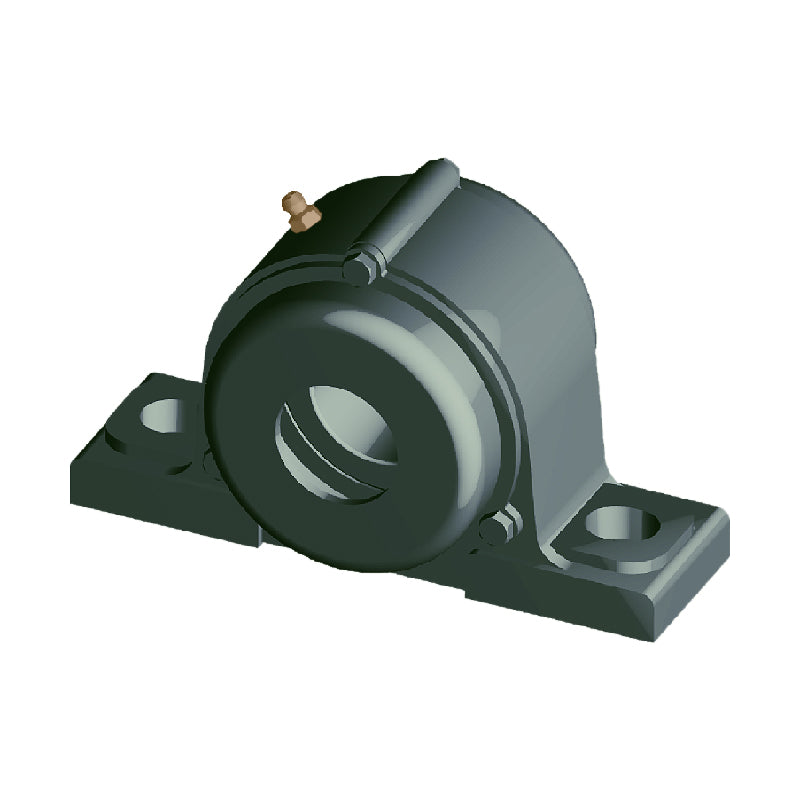

NTN C-UCP306-103D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-3/16 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCP306-103D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-3/16 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Out of stock
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- UCP
- Bolt Hole Centres:
- 5-1/2 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-3/16 inch |
| H | 1-31/32 inch |
| L | 7-3/32 inch |
| J | 5-1/2 inch |
| A | 1-31/32 inch |
| N | 21/32 inch |
| N<sub>1</sub> | 25/32 inch |
| H<sub>1</sub> | 23/32 inch |
| H<sub>2</sub> | 3-3/4 inch |
| L<sub>1</sub> | 2-1/8 inch |
| B | 1.6929 inch |
| S | 0.669 inch |
| H<sub>3</sub> | 4-1/8 inch |
| A<sub>5</sub> | 3-11/32 inch |
| Fixing bolt | 1/2 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 29.5 kN |
| Static load C<sub>0r</sub> | 15 kN |
| Fatigue load limit C<sub>u</sub> | 1.14 kN |
| --- | Unit information |
| Mass | 5.5 lbs |
