SKU: C-UCP210D1-NTN

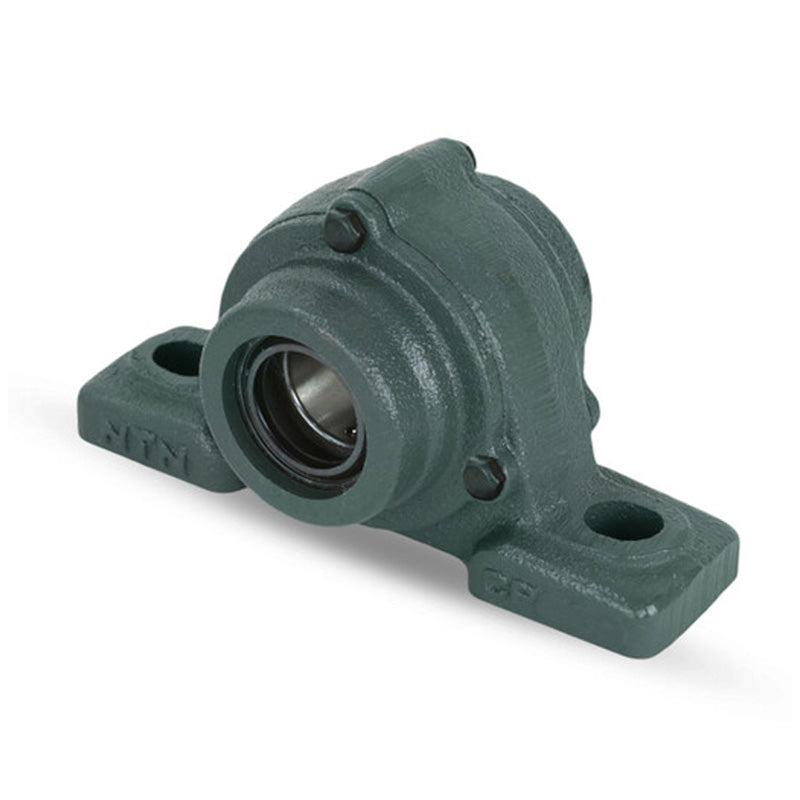

NTN C-UCP210D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCP210D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
€81,95
ex VAT
Regular price
Sale price
€81,95
ex VAT
In stock
Price Break
3+
€61,56
4+
€58,10
9+
€57,41
19+
€56,72
49+
€56,03
99+
€55,34
499+
€51,88
999+
€51,19
1999+
€50,49
2999+
€49,80
4999+
€48,42
Quantity
Couldn't load pickup availability
Description
Description
UCP200_DESC
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCP
- Bolt Hole Centres:
- 159mm
Technical
Technical

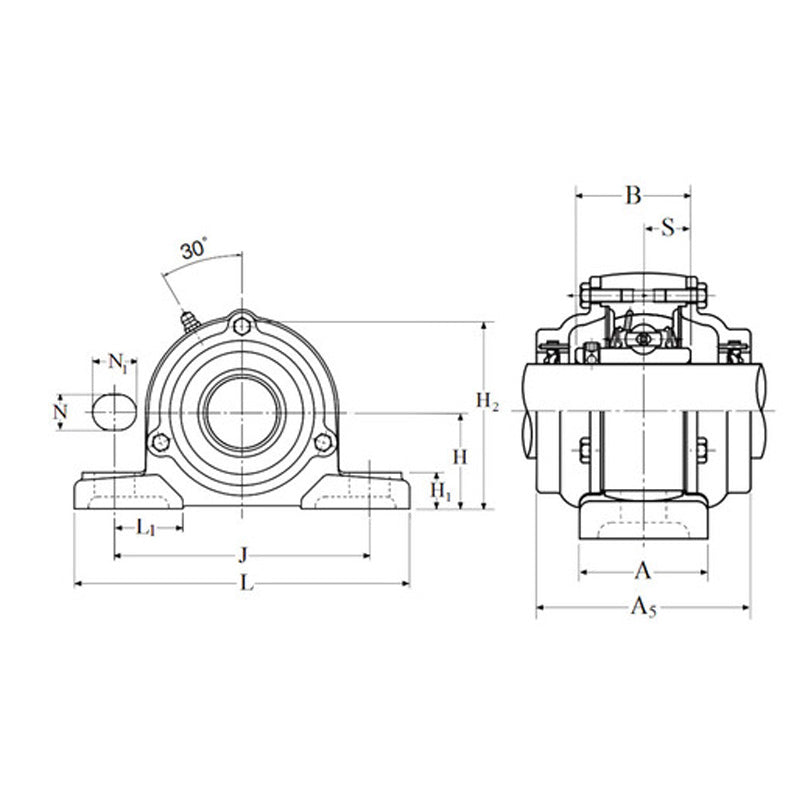

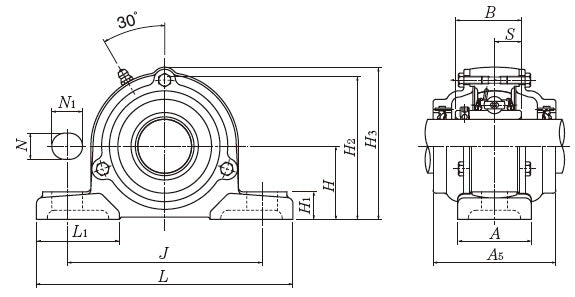

| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| H | 57.2mm |
| L | 206mm |
| J | 159mm |
| A | 60mm |
| N | 20mm |
| N<sub>1</sub> | 23mm |
| H<sub>1</sub> | 21mm |
| H<sub>2</sub> | 114mm |
| L<sub>1</sub> | 65mm |
| B | 51.6mm |
| S | 19mm |
| H<sub>3</sub> | 119mm |
| A<sub>5</sub> | 100mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 39 kN |
| Static load C<sub>0r</sub> | 23.2 kN |
| Fatigue load limit C<sub>u</sub> | 1.82 kN |
| --- | Unit information |
| Mass | 3.6 kg |
