SKU: C-UCP209D1-NTN

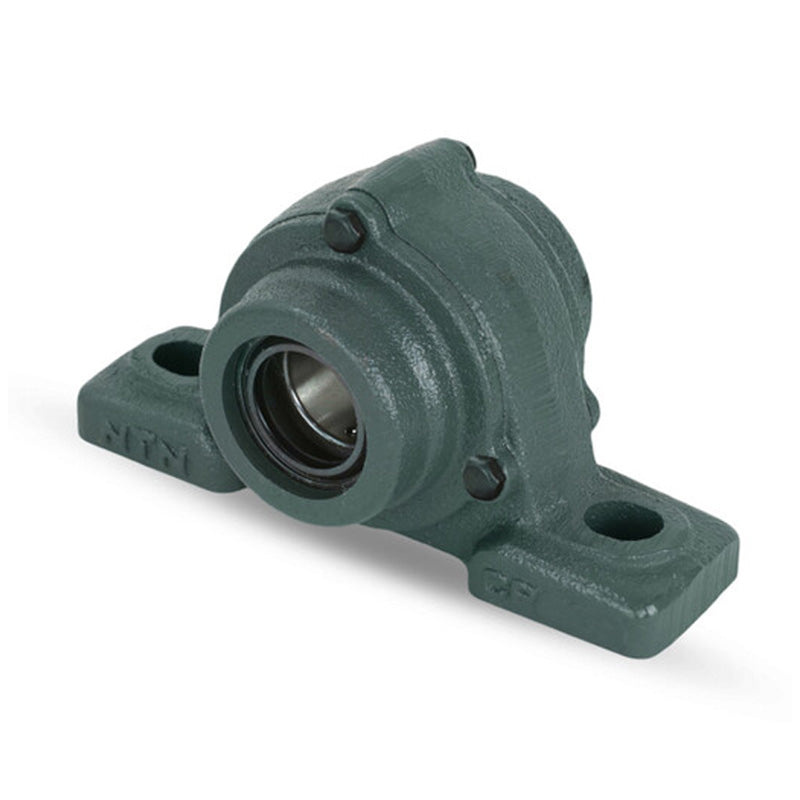

NTN C-UCP209D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCP209D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
€68,95
ex VAT
Regular price
Sale price
€68,95
ex VAT
In stock
Price Break
3+
€51,84
4+
€48,93
9+
€48,35
19+
€47,77
49+
€47,18
99+
€46,60
499+
€43,69
999+
€43,11
1999+
€42,52
2999+
€41,94
4999+
€40,78
Quantity
Couldn't load pickup availability
Description
Description
UCP200_DESC
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCP
- Bolt Hole Centres:
- 146mm
Technical
Technical

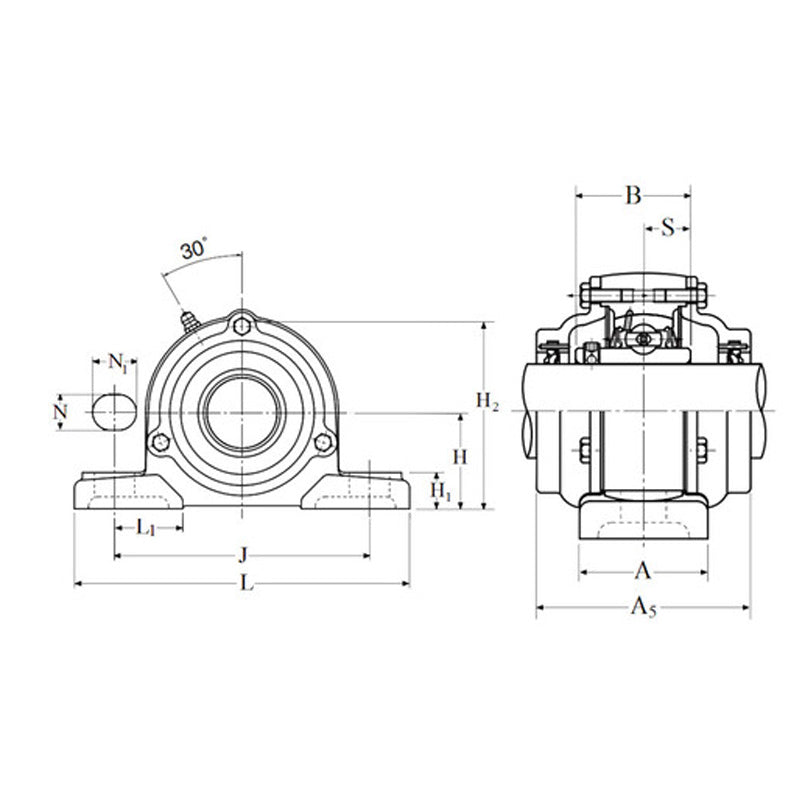

| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| H | 54mm |
| L | 190mm |
| J | 146mm |
| A | 54mm |
| N | 17mm |
| N<sub>1</sub> | 20mm |
| H<sub>1</sub> | 20mm |
| H<sub>2</sub> | 106mm |
| L<sub>1</sub> | 60mm |
| B | 49.2mm |
| S | 19mm |
| H<sub>3</sub> | 113mm |
| A<sub>5</sub> | 95mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 36 kN |
| Static load C<sub>0r</sub> | 20.4 kN |
| Fatigue load limit C<sub>u</sub> | 1.6 kN |
| --- | Unit information |
| Mass | 3 kg |
