SKU: C-UCFC216D1-NTN

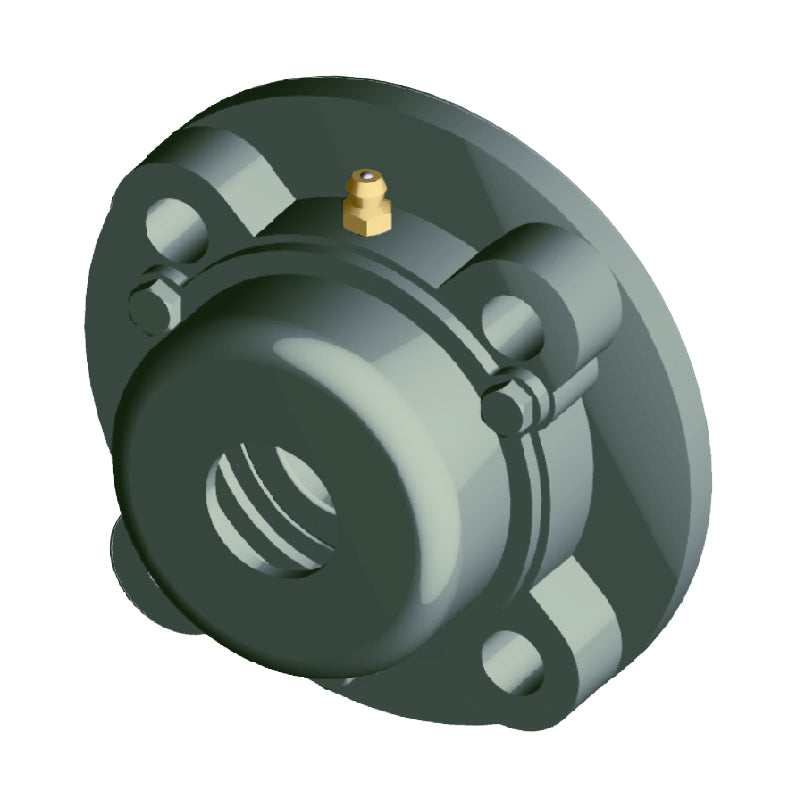

NTN C-UCFC216D1 Metric Four Bolt Cast Iron Round Flanged Housing with 80mm Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCFC216D1 Metric Four Bolt Cast Iron Round Flanged Housing with 80mm Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
€288,95
ex VAT
Regular price
Sale price
€288,95
ex VAT
In stock
Price Break
3+
€219,23
4+
€206,92
9+
€204,45
19+
€201,99
49+
€199,53
99+
€197,06
499+
€184,75
999+
€182,28
1999+
€179,82
2999+
€177,36
4999+
€172,43
Quantity
Couldn't load pickup availability
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 141.4mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 80mm |
| L | 240mm |
| J | 200mm |
| (J<sub>1</sub>) | 141.4mm |
| A<sub>2</sub> | 18mm |
| N | 23mm |
| A<sub>3</sub> | 16mm |
| A<sub>1C</sub> | 43mm |
| A | 58mm |
| H<sub>3</sub> | 170mm |
| B | 82.6mm |
| S | 33.3mm |
| F (Min.) | 105mm |
| A<sub>5</sub> | 106mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 80.5 kN |
| Static load C<sub>0r</sub> | 53 kN |
| Fatigue load limit C<sub>u</sub> | 3.95 kN |
| --- | Unit information |
| Mass | 10 kg |
